What are the common faults of the pneumatic butterfly valve positioner?

Pneumatic butterfly valve positioners play a vital role in industrial automation, translating control signals into precise valve positions that regulate flow with exceptional accuracy. A butterfly valve with positioner enhances system efficiency across water treatment, HVAC, and chemical processing applications. Yet like any precision instrument, positioners are susceptible to specific faults that compromise performance. Understanding these failures helps distributors, contractors, and procurement managers reduce downtime, maintain operational continuity, and make informed sourcing decisions that protect their investment.

​

Understanding Pneumatic Butterfly Valve Positioners

What Is a Pneumatic Butterfly Valve Positioner?

The control system and the actuator talk to each other through a pneumatic butterfly valve positioner. It gets a signal, usually 4-20mA or 3-15 psi, and changes the air pressure going to the actuator. This moves the valve disc exactly where it needs to be. This feedback system makes sure that the valve correctly responds to the needs of the process, taking into account things like friction, changes in pressure, and the properties of the medium.

Modern positioners use sensors and pneumatic circuitry to keep an eye on the position of the valve, compare it to the setpoint, and make changes in real time. This closed-loop control makes repeatability and linearity much better and cuts hysteresis down to within ±1% of full span.

Key Components and Their Functions

Knowing what each component does helps you find the places where things go wrong. Depending on the signal, the pilot valve changes the flow of air. The positioner's comparator device gets the true position of the valve from feedback links. Diaphragms and O-rings keep the pressure limits in place, and screens keep contaminants out of the internal passageways. To keep control purity, every part must work perfectly.

A feedback arm or cam unit connects the positioner physically to the actuator. It is attached directly to the actuator. Because of this tight coupling, it is very important that the mechanical alignment is perfect during fitting. Even small misalignments cause mistakes that build up across the stroke range, making control less accurate and speeding up wear.

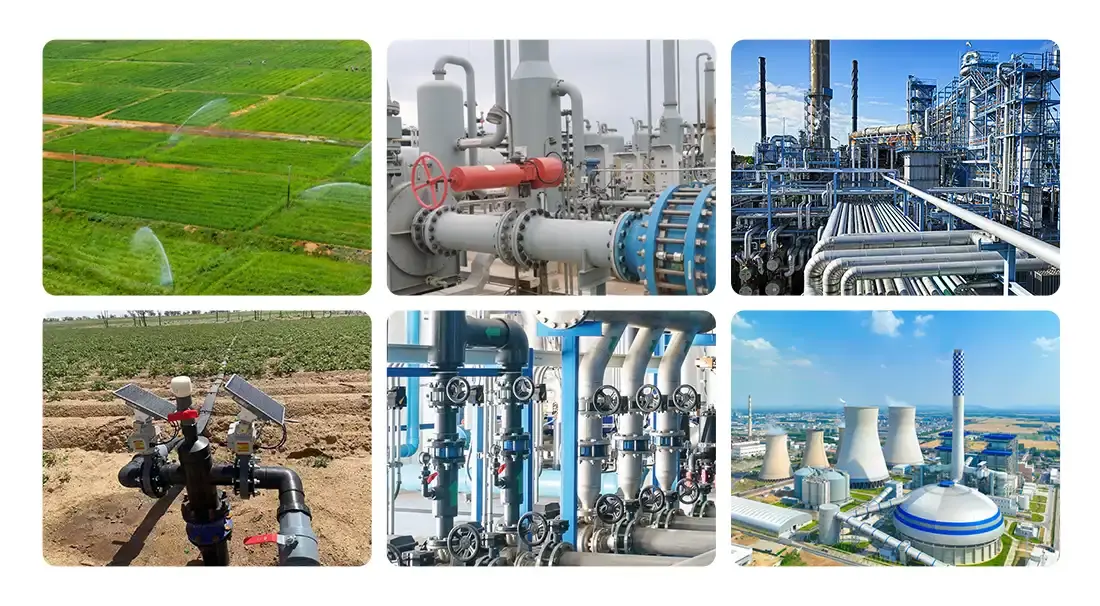

Applications Across Industries

Pneumatic positioners work great in dangerous places where electrical sparks could cause an explosion. Pneumatic systems that are intrinsically safe are used in refineries, chemical plants, and offshore platforms. They are used by municipal water systems to slow the flow of water through the treatment stages. HVAC systems depend on chilled water modulation to precisely control the temperature.

In aeration control, where dissolved oxygen levels must stay fixed even when loads change, wastewater treatment plants value their dependability. Pneumatic positioners are strong enough to work in harsh environments and with changing temperatures, so they can be used outside and in difficult processes.

Common Faults of Pneumatic Butterfly Valve Positioners

Air Supply Issues

A lot of positioner failures are caused by a dirty or insufficient air supply. When moisture builds up in supply lines, it corrodes internal parts and, in cold places, freezes and blocks pathways. When oil from compressors gets into other parts, it leaves behind sticky residues that stop moving parts and block pilot valves.

The actuator can't develop full torque because there isn't enough supply pressure, which means the valve can't fully travel. On the other hand, too much pressure overdrives the system, which causes it to overshoot and hunt. Changes in pressure throw off the balance of forces, which causes the valve to move in unpredictable ways that make process control less stable.

These risks can be reduced by putting in the right filtration and control equipment ahead of the positioner. Combinations of air filters and regulators get rid of dust and moisture while keeping the delivery pressure steady. Filter bowls stay clean and dry by being drained on a regular basis, which keeps them from getting too full.

Mechanical Linkage Problems

The feedback connection turns the position of the valve into a mechanical signal that the positioner can understand. Slop in the system is caused by loose connections, worn bearings, or bent linkage arms. This makes deadband bigger and accuracy worse. Fasteners slowly come loose from vibration, which lets parts move out of place.

At pivot points, corrosion raises friction, which means that more force is needed to move the connection. This resistance makes the positioner work harder, which speeds up the wear on the springs and seals inside. Impacts or poor maintenance can permanently change the shape of a linkage, making it necessary to replace it.

Inspections done on a regular basis find early signs of wear before they become major problems. During routine maintenance, tightening the mounting hardware, greasing the pivot points, and checking the alignment all add to the life of the linkage and keep the control precise.

Signal and Feedback Errors

Differences between expected and actual positions in a butterfly valve with positioner are caused by drift in the input signal conditioner or feedback potentiometer. 4-20mA signals can be messed up by nearby motors or variable frequency drives, which can make the positioner follow the wrong commands.

Over time, calibration drift happens as seals harden, springs relax, and the friction properties change. Temperature cycling speeds up these ageing processes, especially in outdoor sites that are subject to changes in temperature throughout the year. Positioning mistakes build up over time if they are not regularly fixed, affecting the quality of the product or the security of the process.

Digital positioners that can talk to either HART or Fieldbus can do diagnostics that look for strange signal patterns and let operators know when problems are starting to happen. To check signal-to-position links across the working range, traditional pneumatic units need to be tested by hand using calibrated instruments.

Installation and Environmental Factors

If the mounting isn't done right, the internal parts will wear out faster. Positioners that are meant to be mounted vertically may catch condensation if they are put in place horizontally, which can cause rusting. If you don't have enough weather cover, water can get in through conduit holes or broken seals.

Extremes in temperature can damage elastomer seals and lubricants. When O-rings get too hot, they harden and leak. On the other hand, diaphragms get stiff and reaction times get longer when it freezes. Corrosive atmospheres break down building materials and make ways for pollution to get in.

Environmental stability is ensured by choosing positioners with the right ingress protection grades, such as IP66 or NEMA 4X for outdoor use. Protecting delicate parts from dust, rain, and chemicals, enclosures make them last longer in harsh environments.

Diagnosing and Troubleshooting Faults in Pneumatic Butterfly Valve Positioners

Systematic Fault Isolation

Troubleshooting that works follows a logical order that gets rid of uncertainties in a methodical way. First, check the quality and strength of the air source at the positioner's inlet. A pressure gauge checks the delivery pressure, and a water trap check finds problems with moisture.

Next, turn off the input signal and move the positioner by hand to make sure it has mechanical freedom. When movement is stiff, it means that the linkages are stuck or there are problems with the actuators. Watch how the positioner reacts to changes in the signal and write down any delays, overshoots, or failures to reach the setpoint.

Keep track of each test result so that trends can be found. Changing weather conditions, like temperature or humidity, are often linked to problems that happen from time to time. Comparing present performance to data from commissioning shows how performance has declined over time, which helps with choices about whether to fix or replace.

Essential Diagnostic Tools

A good pressure gauge with a precision of 0.1 psi can measure source and output pressures correctly. Leak-detecting spray finds pneumatic leaks at seals and fittings. An electronic or pneumatic signal source that has been adjusted gives known inputs for checking the positioner's reaction.

Vibration analysis tools find mechanical problems like bearing wear or loose parts before they become too big to fix. Thermal imaging cameras show hot spots that mean there is friction or binding. With these predictive technologies, maintenance moves from being reactive to being proactive, which cuts down on unplanned downtime.

When to Call for Professional Support

Expertise is needed for complex diagnostics involving digital transmission methods or repairs to internal positioners. Manufacturers offer technical support and field service for advanced troubleshooting and warranty claims. To replace calibration springs or repair pilot valves, you need the right tools and factory training.

When deciding whether to repair or replace something, look at the total cost of ownership. Positioners that are getting old develop a number of small problems that, when added up, mean they need to be replaced. Modern units have better diagnosis, better materials, and better performance, which more than covers the original investment because they require less upkeep and have better process control.

​

Maintenance Best Practices to Prevent Common Faults

Routine Inspection and Cleaning

Visual checks that are done on a regular basis for butterfly valve with positioner catch problems early on. Check to see if there are any air leaks at the fittings, rust on the case, or broken connections. Keep the outside surfaces clean so that dirt and grime don't build up and move inside.

In wet places, drain the filter bowls once a week. In dry places, drain them once a month. According to the manufacturer, filter elements should be replaced every six to twelve months, but this can change depending on the quality of the air. Check the regulator diaphragms once a year and replace them if they are cracked or stiff.

Use the recommended grades of grease on pivot points sparingly so that they don't get too dirty. Make sure that the torque values of the fitting hardware stay within the range allowed. Tighten again if necessary to keep the hardware from coming loose from vibrations.

Calibration and Testing Protocols

Positioners should be calibrated every six months for important uses and once a year for general service. Check the difference between where the valve actually is and where it should be at 0%, 25%, 50%, 75%, and 100% of its span during both the opening and closing steps. Check that the hysteresis stays within acceptable limits, which are usually less than 1% of the span.

Small drift can be fixed by changing the zero and spread settings before it affects the process speed. Keep track of trends over time by writing down the results of the calibration. When drift speeds up, it means a part is about to break, so it needs to be replaced before it fails during planned repair times.

Testing for partial strokes makes sure that the emergency shutdown works without stopping production. Smart positioners do this checking automatically and record the results for safety records. For manual testing to go smoothly, everyone needs to work together carefully.

Environmental Protection Strategies

Putting sun shields on outdoor positioners stops heat buildup that speeds up the ageing process. In cold places, heated enclosures keep the temperature inside above freezing, which keeps condensation from freezing and closing passageways.

Putting corrosion-resistant coatings on surfaces that are exposed in chemical handling settings makes them last longer. Housings made of polymer or stainless steel are better at withstanding harsh environments than those made of carbon steel or aluminium. Epoxy resin coats are a cheap way to protect against mild exposures.

Making Informed Procurement Decisions for Pneumatic Butterfly Valve Positioners

Comparing Positioned and Non-Positioned Valves

Butterfly valves with positioners that are not in a fixed position can be used for simple on-off functions or manual throttling. When you add a positioner, the unit changes into a precise control element that can keep the setpoint within very small error margins. This change is worth the extra money in situations where process security has a direct effect on the quality of the product or the amount of energy used.

Positioned valves make changes that would normally need to be done by hand easier by automating them. Remote control from control rooms makes dangerous areas safer. Data logging helps improve processes and make sure they follow the rules.

Selecting Between Pneumatic and Electro-Pneumatic Positioners

Pneumatic positioners are easy to use and naturally safe because they only need compressed air. They are useful in places where there isn't access to electricity or where electronic gadgets aren't allowed because of the risk of damage. Standard 4-20mA signals can be used with electro-pneumatic models, which makes coupling with remote control systems easier.

Smart positioners that can communicate digitally can do diagnostics that analogue units can't. The 4-20mA signal is overlaid with digital data by the HART protocol. This lets the system be set up remotely, and its health be monitored without adding any extra wires. Advanced control methods and predictive maintenance data can be used with fieldbus systems.

Evaluating Supplier Capabilities

Reliable suppliers keep enough standard configurations in stock and offer quick lead times for replacements that need to be made right away. Customisation is important for non-standard uses that need special materials, motors that are too big, or different ways to place them.

The level of technical help is what sets great suppliers apart from average ones. Choosing the right product is easy when you can talk to application developers who know your process conditions. Advice on installation, help with setup, and help with fixing all increase the uptime of equipment.

Warranty terms show that the company that made the product is confident in its quality. Standard treatment lasts between 12 and 18 months, but you can choose to have it last longer. Clear rules about returns, fixes, and fast service protect against problems that come up out of the blue.

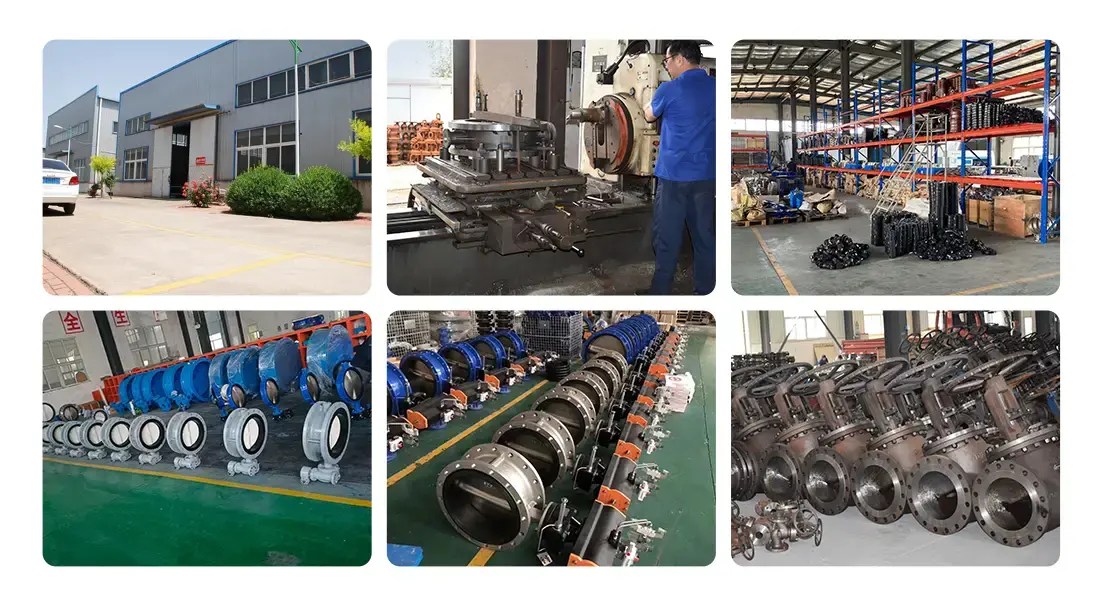

Our factory in Tianjin's Beichen District makes butterfly valves with wafer, lug, and double flange connections, including the butterfly valve with positioner model. The valves' sizes range from 2" to 24" (DN50 to DN600). The pressures used are up to CLASS 150, PN 10, and PN 16 standards. We offer full accessory kits that include solenoid valves, limit switches, positioners, air filters and regulators, actuators (both double-acting and spring-return), and gears. ISO9001 approval and extensive testing facilities make sure that the standard of each production run is the same.

​

Conclusion

Pneumatic butterfly valve positioners improve the accuracy of control, but they need to be properly maintained, and problems need to be fixed quickly for them to work reliably. The most common ways for something to fail are a contaminated air supply, mechanical wear, shifting calibrations, and being exposed to the environment. Most problems can be avoided before they cause problems by following systematic check practices, keeping the air supply clean and dry, and calibrating on a frequent basis. Total cost of ownership can be minimised while process stability is maintained by buying quality parts from responsive suppliers and knowing when to fix and when to replace equipment.

Frequently Asked Questions

1. How Often Should I Calibrate My Pneumatic Butterfly Valve Positioner?

How often you calibrate depends on how important the application is and how it is being used. Important process control loops should be checked every three months, while general service uses usually need to be calibrated once a year. Harsh settings with high or low temperatures, shaking, or acidic air speed up drift, so they need to be checked more often. By keeping track of testing results over time, you can see how different pieces of equipment work, which lets you choose the best intervals based on performance rather than random plans.

2. Can I Use Standard Shop Air for Pneumatic Positioners?

Standard shop air often has too much moisture and oil from the blowers that can cause positioners to fail too soon. Putting in a separate filtering and control system gets rid of contaminants and keeps the pressure stable. Air fans lower the dew point below room temperature, which keeps the positioner from condensing. Coalescing screens catch oil mists before they get to parts that are easily damaged. This small investment in preparing the air makes the positioner last a lot longer.

3. What Causes Hunting or Oscillation in Positioned Valves?

Most of the time, hunting happens when the positioner's control program has too many gain settings. When actuators are too big for the job, small changes in the signal are turned into big valve movements. Instability in the supply pressure leads to force imbalances that cause oscillation. When there is mechanical binding in the valve or coupling, friction is introduced that makes the reaction less smooth. Usually, hunting behaviour can be fixed by changing the positioner's setting factors, making sure the supply pressure stays stable, and making sure the machine has enough mechanical freedom.

Partner with ZTVK for Reliable Butterfly Valve Solutions

ZTVK is a company in Tianjin's Beichen District that makes high-performance butterfly valve with positioner systems that are customised to meet your needs. Our double eccentric design cuts power by 30% and makes the service life last longer than 50,000 rounds. We keep standard configurations in stock ranging from DN50 to DN600, which means that routine orders can be delivered in 3–7 days.

We have been a butterfly valve with positioner supplier for a long time and can help with OEM branding, custom engineering, and rush production. We also have dedicated lines for clients in other countries. Our closeness to Tianjin Port makes logistics easy, and our relationships with major shipping lines let us offer cheap FOB and CIF terms. Quality systems that are ISO9001-certified and thorough testing methods make sure that products always work the same way.

Whether you need large quantities to distribute, custom designs for a specific project, or technical advice on how to solve problems with an application, our engineering team is ready to help you succeed. Contact us at ktec86961886@163.com to talk about how ZTVK can help you get the best deals on valves by providing you with reliable goods, quick service, and low prices, all backed by over 15 years of production experience.
