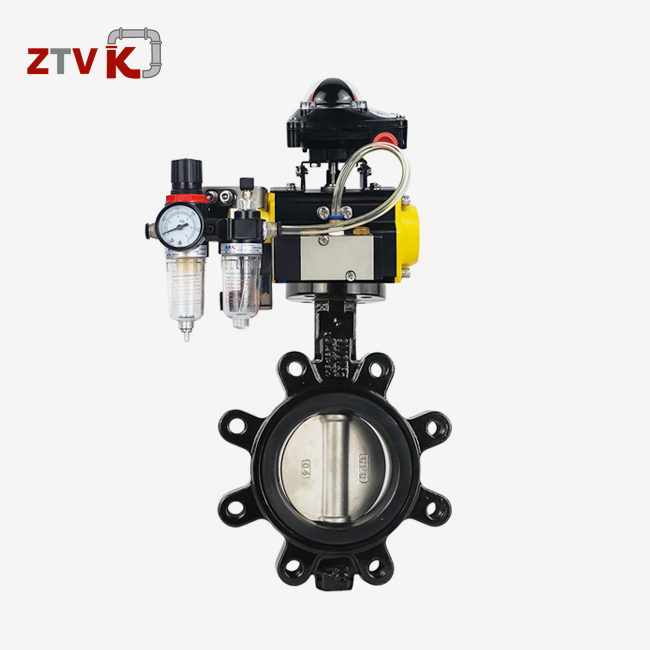

Actuator Operated Butterfly Valve - Premium Industrial Flow Control Solution

Our actuator operated butterfly valve conveys remarkable execution with progressed designing highlights. ZTVK's enterprise-grade arrangement joins twofold unpredictable furthermore angled seal plan, decreasing opening torque by 30% whereas amplifying operational life expectancy past 50,000 cycles. Accessible in sizes from 1.5" to 48" (DN40-DN1200mm) with PN10/PN16 weight appraisals, this valve bolsters both single and twofold acting pneumatic operation for flexible computerization control over petrochemical, control era, and water treatment industries.

Why Choose Our Actuator Operated Butterfly Valve?

Advanced Engineering Design

Our butterfly valves highlight a progressive "twofold unconventional + angled seal" arrangement that sets modern industry benchmarks. This imaginative plan decreases working torque by 30% compared to customary valves, making your computerization frameworks more energy-efficient.

The shrewdly development capability permits you to overhaul from manual to mechanized operation without supplanting the whole valve body. Your existing foundation speculation remains secured whereas picking up progressed control capabilities.

Superior Material Construction

We get it that toughness things in requesting mechanical situations. Our valves back different fabric alternatives counting carbon steel WCB, stainless steel 304/316, and duplex steel compositions. These materials give predominant erosion resistance compared to standard cast press alternatives.

The valve shaft utilizes premium SS410/416/SS304 or SS316 stainless steel for greatest unwavering quality. Situate choices incorporate EPDM, Nitrile, White EPDM, PTFE, and VITON to coordinate your particular media requirements.

Flexible Actuation Options

Your actuator operated butterfly valve comes with flexible pneumatic incitation choices:

Single Acting Operation: Highlights spring reset usefulness for fail-safe operation. When discuss supply is misplaced, the valve naturally returns to foreordained secure position (regularly closed or regularly open).

Double Acting Operation: Gives exact situating control with compressed discuss driving both opening and closing developments. The valve keeps up its final position amid discuss supply interruptions.

Both arrangements offer 90-degree revolution for fast reaction times in basic applications.

Technical Specifications

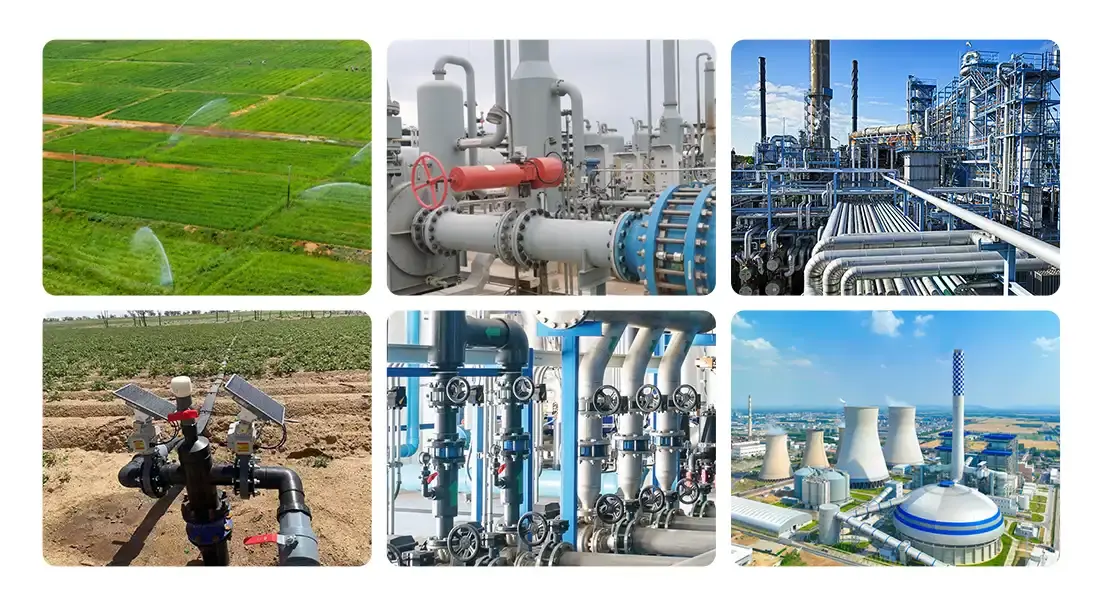

Key Applications and Benefits

Versatile Flow Control Functions

Your automated butterfly valve performs three essential functions in industrial systems:

Cut-off Operation: Provides reliable isolation for maintenance and emergency shutdown procedures. The pneumatic actuation ensures rapid response when you need immediate flow stoppage.

Flow Regulation: Fine-tune flow rates, pressure levels, and temperature control throughout your process systems. The precise positioning capability allows accurate adjustment to meet varying operational demands.

Automated Control Integration: Seamlessly connects with your existing control systems through pneumatic actuators and auxiliary control equipment. This reduces manual intervention while improving operational efficiency and safety.

Working Principle

The valve operates using compressed air as the primary power source. The pneumatic actuator drives the valve stem rotation, causing the butterfly disc to rotate within a 0° to 90° range. This movement enables rapid opening, closing, or flow adjustment based on your process requirements.

Quality Assurance and Standards Compliance

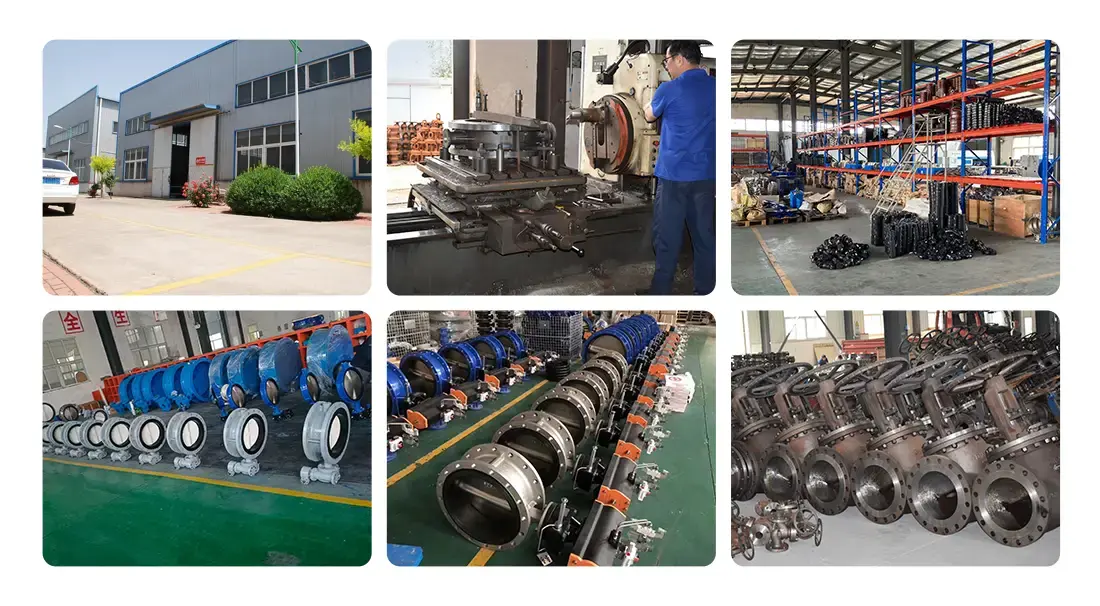

ZTVK maintains strict quality control with ISO9001/ISO4001/OHSAS18001 system certifications. Our manufacturing facility features modern CNC machining centers, specialized large-diameter valve processing equipment, and comprehensive testing capabilities.

We manufacture according to multiple international standards including American (API, ANSI), Japanese (JIS), British (BS), and German (DIN) specifications. This ensures your actuator operated butterfly valve meets global quality expectations.

Exhibition

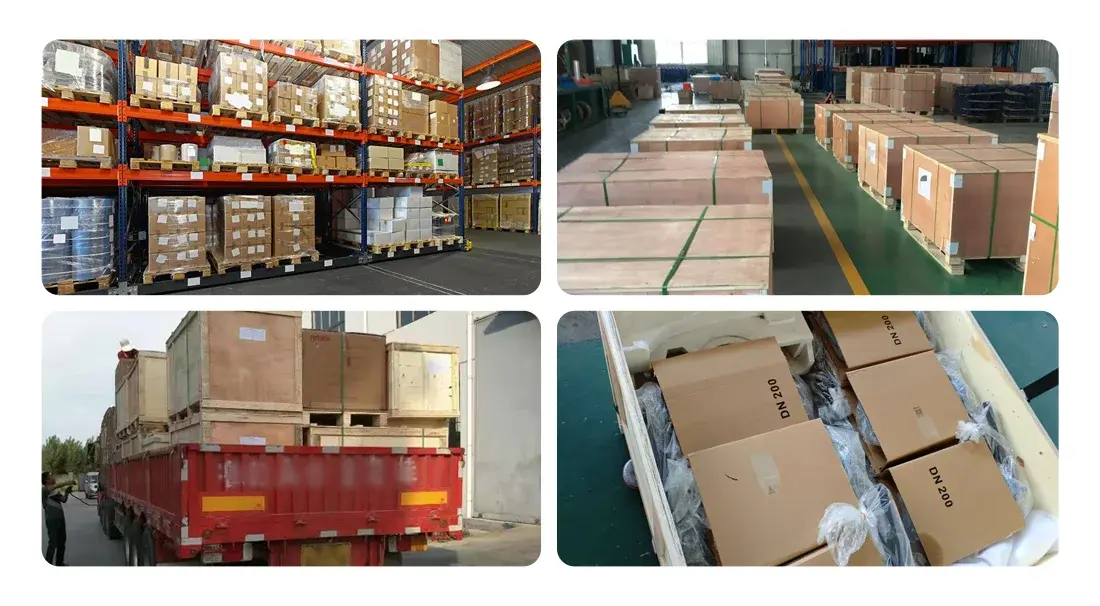

Delivery and Support Advantages

Fast Delivery: Standard models (DN50-DN600) ship within 3-7 days from our 2000+ unit inventory. Custom configurations require 15-25 days depending on complexity.

Geographic Advantage: Located just 50km from Tianjin Port, we provide efficient shipping through established partnerships with major carriers including COSCO Shipping and Maersk.

Comprehensive Warranty: Enjoy 18-month warranty coverage with free replacement for non-human damage. Installation guidance videos and troubleshooting manuals ensure smooth operation.

Contact Us: Ready to upgrade your flow control systems? Email us at ktec86961886@163.com for expert guidance and competitive pricing of actuator operated butterfly valve.
