Flanged Butterfly Valve - ZTVK

Operated: Electric actuator
Connection method:Flanged type
Connection standard:ISO5211--PN10/PN16/125LB/150LB/JIS5K/JIS10K/JIS16K
Size:2"-80"(DN50-DN2000 mm)
Working pressure:PN10/PN16
Body material：Ductile iron/WCB/SS304/SS316
Disc material：DI/CF8/CF8M/Aluminum bronze
Seat material：EPDM/NBR/PTFE/VITON/

Actuation: Single Acting / Double Acting (90° - Turn )
Actuator Body: Extruded Aluminium Hard Anodised
Caps And Rack: Aluminium Pressure Die Cast
Actuator Design: ISO 5211 (Actuator Can Be Quickly And Easily mounting)
Butterfly Valve Detail: -Body:Ductile iron-DI / CF8 / CF8M / WCB (Cast Steel)
Disc:DI / CF8 / CF8M/Aluminum bronze
Shaft: SS410/416/SS 304 , SS316
Seat: EPDM / Nitrile / White EPDM/PTFE/VITON
End Connection: Wafer Type / Flanged End To ASME B 16.5 (150#/300#)
Pressure Rating: PN10 / PN16

Size Range: DN50-DN3000

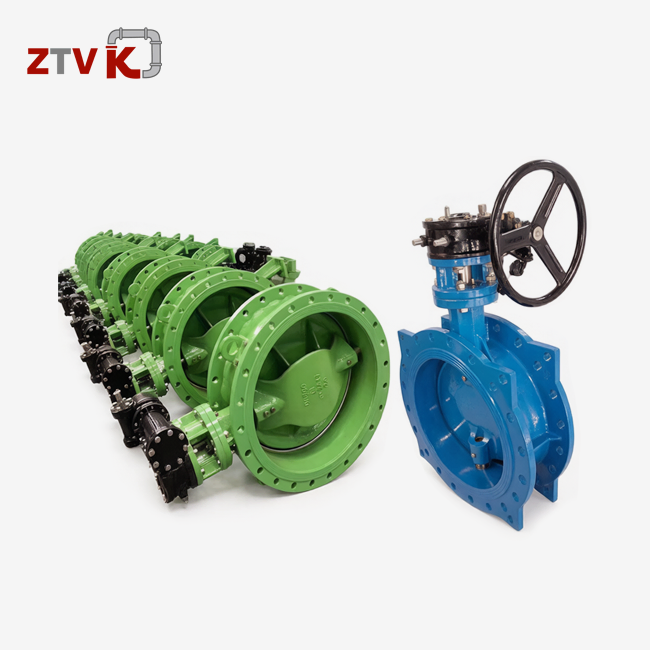

Pressure Rating:PN6 / PN10 / PN16 / 150LB

Body: Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529),

Disc: DI(Ni lined), WCB (A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2205/2507)

Seat: Metal+Flexible Graphite

Actuator:Worm Gear, Electric, Pneumatic

Sample: available
