Application scenarios of double-acting butterfly valves

Double acting butterfly valves are a big step forward in controlling flow in industry. They solve problems that engineers and buying workers face every day. The two sections of these pneumatically operated devices are filled with compressed air, which opens and closes them. The force stays the same throughout the 90-degree stroke. In contrast to spring-return designs, which lose torque over time, these valves keep working at their best in tough situations, such as chemical processing lines that deal with thick fluids or city water systems that need precise tuning. Industries that value dependability, fast cycling, and fail-in-position safety are increasingly specifying these valves for pipeline sizes ranging from DN700mm to DN2000mm. When compressed air loss happens, these valves keep working, which avoids costly production breaks and keeps the process stable.

​

Understanding Double-Acting Butterfly Valves in Industrial Applications

Operating Principles and Design Architecture

Pneumatic actuators in the double-acting butterfly valve design need air pressure to move in both directions. When compressed air comes into chamber A, the piston turns the disc open 90 degrees by driving the rack-and-pinion device. Switching the flow of air to chamber B shuts the valve with the same amount of force. This balanced pneumatic method gets rid of the mechanical spring fatigue that comes with single-acting options. In well-maintained systems, this means that the system can work for more than 50,000 rounds. The actuator attaches directly to the valve stem using ISO5211 connection standards. This makes sure that it works with PN10 and PN16 pressure classes as well as international flange values of 125LB and 150LB and JIS10K standards.

Body materials include ductile iron (GGG50) for city use and stainless steel types CF8M (316SS) for places where corrosion is a problem. Chemical protection and temperature tolerance are directly affected by the disc material choice. These materials include nickel-lined ductile iron, WCB carbon steel, or duplex stainless steel 2205/2507. Seat materials like EPDM, NBR, PTFE, and VITON offer bubble-tight shutdown when used with the right working medium. This material's flexibility meets the needs of a wide range of industries, from those that need neutral water systems to those that need strong chemical streams.

Distinction from Single-Acting Variants

Single-acting versions have a mechanical spring that moves the valve back to a safe position when the air flow stops. This fail-safe feature works well for emergency stop systems, but as the spring contracts and expands, it causes friction and changes in torque. Because air pressure, not spring strain, moves both strokes of a double-acting butterfly valve, the total torque stays the same. This feature is very important in situations where consistent breaking torque is needed against sticky media or pipeline deposits that could stop spring-return systems in their tracks. The downside is that double-acting designs lose their automatic fail-safe placing. This makes them perfect for processes where keeping the last position during temporary air loss stops batch contamination or temperature shock.

Evaluating Double-Acting Butterfly Valves versus Alternative Solutions

Performance Comparison with Alternative Valve Technologies

Ball valves seal better and have less pressure drop, but they take up a lot more room and require more torque to open and close, especially for big diameters. Triple-offset butterfly valves have a metal-seated stop for high-temperature uses, but they are very expensive and may not be worth the extra money in regular HVAC or water systems. With 4-20mA control signals, electric actuators can precisely place things, but they need electrical equipment on-site and special upkeep.

When purchasing in bulk, pneumatic double acting butterfly valves are the best choice. Their small face-to-face sizes make them easy to put in pipe racks that are often crowded in petrochemical plants. Most industrial sites already have the infrastructure for supplying air, so they don't have to pay for the electricity conduit that motorized options do. With standard actuators, the quarter-turn process is finished in less than 5 seconds. This allows for fast batch changes that linearly operated gate valves can't match. Lifecycle costs are still good because pneumatic parts can handle rough conditions better than computer positioners that can get wet.

Cost-Benefit Analysis for Procurement Decision-Makers

Take the differences in repair intervals into account when figuring out the total cost of ownership. Metal wear means that single-acting models' spring cylinders need to be replaced every 30,000 to 40,000 cycles. On the other hand, double-acting pistons and seals can usually go over 100,000 cycles with regular lubrication. The higher price at first for double-acting configurations—usually 15-20% more than spring-return equivalents—disappears over time because they last longer and require less maintenance. The standardization on double-acting designs makes it easier for distributors to keep extra parts on hand and train technicians. This creates practical savings that spread through the supply chain.

Application Scenarios and Problem-Solving Benefits of Double-Acting Butterfly Valves

Here are some of the most important industries where these double-acting butterfly valves solve specific operational challenges:

Municipal Water Distribution and Treatment Facilities

Controlling the shutting speeds of large-bore transmission mains (DN700–DN2000 mm) is made easier by exhaust flow controllers. When high-speed water lines suddenly close their valves, damaging pressure waves, also known as "water hammer," are released. These waves can break ductile iron pipes. The double-acting valve lets engineers slow down the exhaust air, which increases the close time from 2 seconds to 30 seconds and limits the pressure surge to levels below the pipe's stress ratings. This managed slowing down saves investments in infrastructure while keeping the flow modulation accuracy needed for tactics that are based on demand. During power outages, the fail-in-position behavior keeps the system pressure steady, which stops backflow poisoning that fail-closed valves could accidentally cause in gravity-fed networks.

Chemical Processing and Batch Manufacturing

Fluids that are thick, like adhesives, resins, or slurries, put a lot of breaking force on valve parts. Many of the time, spring-return motors don't have enough saved energy to remove polymerized residue from discs that are stuck in place, which causes them to stop working. Double-acting designs apply all the pneumatic power at the important first turn, which eliminates friction that would normally need to be dealt with by hand. Being able to stay in place between batches keeps products from mixing in shared pipes, which helps keep quality control in facilities that make more than one product. PTFE seats on stainless steel bodies make them chemically compatible across a range of pH levels. ISO9001-certified makers use positive material identification tests to make sure that materials can be tracked back to their original sources.

​

HVAC and Industrial Cooling Systems

To keep temperatures where they should be, chilled water loops that serve data centers or manufacturing processes need to be able to reliably modulate, using double acting butterfly valves. The fail-in-position feature keeps the flow of cool air going even when there are short breaks in the compressed air. This keeps sensitive equipment from being damaged by temperature changes. Compared to standard 304 metals, duplex stainless steel discs last longer between replacements because they don't suffer from chloride-induced stress rust that happens a lot in cooling towers. When electro-pneumatic positioners are connected to building automation systems, energy optimization methods can be used to cut pump power use by 15–25% by controlling flow based on real-time heat loads.

Procurement Considerations for Double-Acting Butterfly Valves

Critical Selection Criteria for Industrial Buyers

Accurate sizing is the key to good double-acting butterfly valve placement. Too small of valves cause too fast of flow rates that wear down seats and raise pressure drop, while too big of valves make it hard to control low flow rates. Engineers should figure out the flow coefficient (Cv) needed at the highest design flow and then choose the next standard size that gives them a 20–30% buffer. For flanged connections, make sure that the bolt hole patterns match the current pipes. The ANSI 150LB patterns are different from the PN16 European standards, even though they have the same pressure values. If they are not matched, it can be very expensive to make changes in the field.

Supplier Evaluation and Quality Assurance Protocols

For actuator size, the highest differential pressure during action needs to be looked at. Manufacturers give torque charts that show how air supply pressure (usually 4–7 bar) affects output torque. The torque must be 25–30% higher than what the valve needs to be safe. Rack-and-pinion mechanisms are good for larger setups because they are small, but Scotch-yoke designs are better for tough jobs because they can handle more power. Buyers should ask for actuator torque certification papers and make sure that providers test the parts mechanically before shipping by running them through 50 full strokes without power.

Distributors and selling companies need to set strict criteria for qualifying suppliers so that there aren't quality problems that hurt relationships with customers. While ISO9001 certification sets a basic standard for manufacturing, API 598 hydrostatic testing verification gives a higher level of confidence in the stability of the pressure limit. The shell should be tested at 1.5 times its rated pressure, and the seat should be tested at 1.1 times its rated pressure. Leakage rates should be recorded, and the seals should be "bubble-tight" according to API standards. Manufacturers with a good reputation test the actuator's internal air leaks and do pneumatic cycle testing to make sure the piston seal works before packing.

When selecting stainless steel parts, including double acting butterfly valves, material approvals should be looked at very carefully. Ask for positive material identification reports made using X-ray fluorescence analysis to make sure that CF8M bodies actually have molybdenum content that meets 316SS standards. Some cheap providers use 304 alloys instead, which break down quickly in chloride environments. Companies that want to keep customers for a long time put this kind of clear paperwork at the top of their list of priorities. They know that major problems destroy trust faster than any price benefit.

Conclusion

To choose the right double-acting butterfly valves, you need to know how the actuator works, what materials will work with them, and what performance standards the application has. By delivering regular power and being reliable even if they fail, these devices solve important problems in HVAC systems, chemical processing, and water distribution. For successful procurement, you need to look at the quality systems of suppliers, confirm the certifications of materials, and make sure that the specs of valves match the conditions under which they will be used. If these valves have the 50,000-cycle service life and bubble-tight shutdown that make the investment worthwhile, they depend on how well they are installed and maintained. By working with qualified makers, engineering teams can get technical help, OEM customization options, and clear documentation. This turns one-time purchases into long-term partnerships with suppliers.

FAQ

1. What industries benefit most from pneumatic double-acting butterfly valves?

The biggest winners are municipal water companies, chemical producers, HVAC firms, and petrochemical plants. Controlled closing is used in water systems to stop damaging pressure spikes in big transmission mains. Chemical plants need the steady torque to work consistently in thick fluids that would stop spring-return systems in their tracks. HVAC systems like the fail-in-position feature that keeps the air cool even when the air flow is temporarily cut off. These double-acting butterfly valves have a longer mechanical life, which is useful for any application that uses DN700–DN2000mm pipes that cycle a lot.

2. How do double-acting designs improve safety compared to single-acting alternatives?

The fail-in-position behavior stops sudden process breaks when the compressed air supply goes out. This keeps the system balanced in batch production and thermal management tasks. This is different from spring-return valves, which go back to a set position on their own, which could lead to uncontrollable changes in pressure or product contamination. When deciding between actuation methods, it is important to think about the application context because safety gains show up through operating continuity rather than emergency separation.

3. What technical specifications should buyers prioritize when requesting custom valves?

Core performance limits are set by the highest differential pressure, the range of working temperatures, and the interaction with chemicals. Make it clear what materials the body and trim are made of—general calls for "stainless steel" can lead to problems with substitutions. Keep track of the certifications you need, like API 598 pressure testing, OHSAS18001 factory compliance, and records on how materials were made. Clearly define the connection standards, keeping in mind that PN16 and 150LB flanges cannot be used together, even though they have the same pressure values. When buyers give clear specs, it reduces the need for expensive changes in the field and project delays.

Partner with ZTVK for Reliable Double-Acting Butterfly Valve Solutions

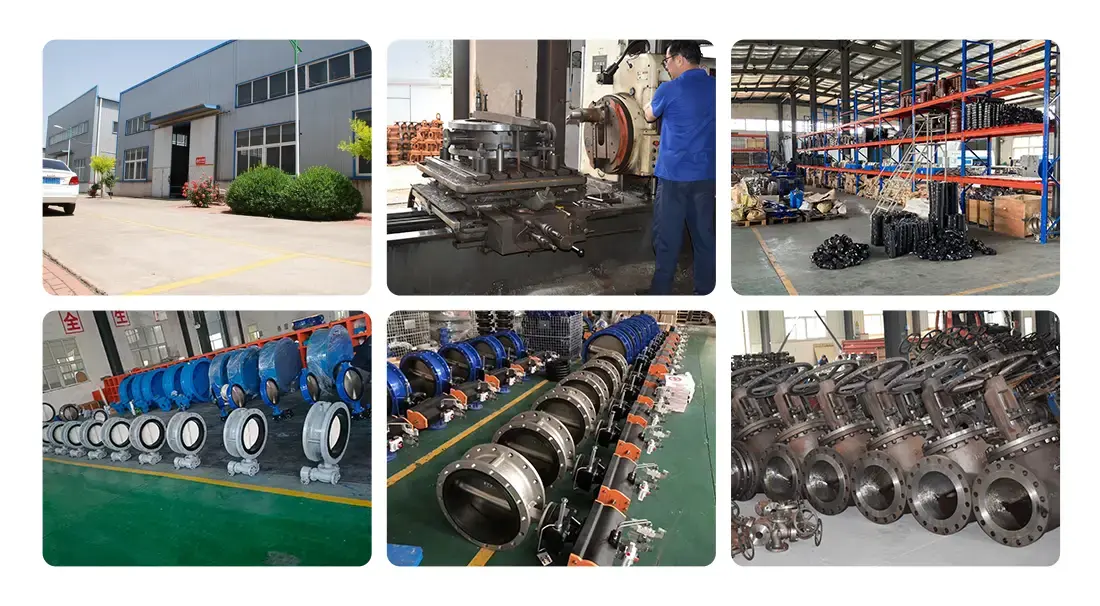

Industrial valve traders and wholesalers looking for a reliable maker of double acting butterfly valves will find that ZTVK provides the quality consistency and supply chain reliability needed to keep customers trusting the company. We are in Tianjin's Beichen District, which has direct access to Xingang Port, and we keep more than 2,000 standard units in stock. These can be delivered in 3–7 days, and special orders in sizes DN700–DN2000mm are finished in 15–25 days. Our extensive testing facilities, which include hydraulic shell testing at 1.5 pressure and pneumatic cycle validation, along with our ISO9001, ISO14001, and OHSAS18001 certifications, make sure that every valve meets international standards before it is shipped.

Inconsistent quality and long wait times are problems that we know about when it comes to buying. Our in-house production skills get rid of the markups and organizational delays that come with working with brokers. This lets us offer affordable prices without sacrificing the integrity of the materials, which is confirmed by positive material identification. We are committed to long-term relationship success by offering OEM branding support, flexible order amounts, and an 18-month warranty with installation help videos. To make the sourcing process easier, distributors can email our engineering team at ktec86961886@163.com for technical advice on choosing the right material, the right size actuator, or making changes that fit a specific application.
