What are the functions of metal-to-metal valve seat butterfly valves?

When selecting valves for critical industrial applications, understanding the specific functions of metal-to-metal seated butterfly valves becomes essential. Metal-to-metal seated butterfly valves are advanced quarter-turn isolation devices engineered to deliver reliable sealing performance in extreme environments where traditional soft-seated valves fail. Unlike conventional butterfly valves relying on elastomeric liners, these valves utilize hardened metal interfaces between the disc and body seat, offering exceptional resistance to high temperatures, abrasive media, and corrosive fluids while maintaining zero-leakage performance throughout extended service cycles.

Understanding Metal-to-Metal Seated Butterfly Valves: Fundamentals and Functions

The main idea behind metal-to-metal seated butterfly valves is their triple-offset shape, which is a new way of designing things that gets rid of friction while they're working. This engineering method makes sure that the valve disc only touches the seat at the very end of the closing process. This stops the wear and galling that happen with traditional designs.

How Metal-to-Metal Sealing Works

The system for sealing depends on sides that are carefully machined to form a tight barrier when the valve closes. The disc's triple-eccentric configuration moves it away from the seat when the actuator turns it, and then it cams back into place when the actuator turns it off. This cam effect creates the necessary seating force without the need for constant contact that rubs against each other. The metal seat is often hardened with layer materials like Stellite or tungsten carbide. Its surface hardness reaches 35 to 60 HRC, which makes it very resistant to wear.

Extremes of temperature that would damage rubber or PTFE chairs don't bother these metal ones. They work successfully in a wide range of temperatures, from -196°C in LNG terminals to 600°C for superheated steam uses in power plants. Because they can handle temperatures up to 400°C, they are essential for petroleum plants where process fluids often work at high temperatures.

Primary Functions in Industrial Operations

These valves are very important in many different types of industries. They block flow in both directions, stopping backflow and keeping the system's integrity during maintenance breaks. Metal seats can handle full differential pressure from both directions, which is something that soft-seated seats can't do. In abrasive slurry uses, the hardened surfaces cut through particles that would get stuck in and damage rubber seals. This keeps the bidirectional isolation integrity even when digging or handling coal ash.

Another important role is fire safety. Metal-to-metal seating designs meet API 607 and ISO 10497 standards without the need for extra soft seals because they are naturally fire-safe. When exposed to fire, they keep working even when polymer-based valves melt and stop working. This keeps people and property safe in chemical plants and factories.

Key Design Features and Material Selection of Metal-to-Metal Seated Butterfly Valves

Material compatibility has a direct effect on how long a valve lasts and how well it works. Our experience making things at ZTVK in Tianjin has shown us that choosing the right materials can keep metal-to-metal seated butterfly valves from breaking down too soon in tough conditions.

Body and Disc Materials

When it comes to water and municipal applications with moderate corrosion exposure, valve bodies made of ductile iron (GGG40/50) are a cost-effective option. Carbon steel bodies (WCB A216) are stronger and can handle higher pressures up to PN16 and 150LB classes, making them ideal for use in industrial process systems. Stainless steel types like SS304, SS316, SS304L, and SS316L work very well across a wide pH range when higher resistance is needed because of corrosive media or hygiene concerns. Duplex stainless steels, such as 2507 and 1.4529, are very strong and don't rust, making them perfect for use in harsh chemical environments.

Disc materials are chosen in a similar way. Nickel-lined ductile iron discs are cheap and protect against rust. Stainless steel and duplex steel discs (2205/2507) are tough and can handle strong fluids. Flexible graphite is used as an extra sealing element in the disc-to-seat contact. This makes it leak-tighter while still keeping the metal-to-metal primary sealing.

Seat Geometry and Surface Treatments

In triple-offset versions, the conical seat shape makes sure that the contact pressure is the same all the way around. Surface treatments, such as hardfacing with cobalt-chromium metals, make barriers that don't wear down easily and last longer than 50,000 rounds of use. Modern designs with pressure balancing features lower actuation torque by 30% compared to concentric setups. This lowers the cost of the actuator and lets you operate bigger sizes by hand, while competitors need powered actuation.

The sizes of these valves range from DN50 to DN3000, so they can fit everything from small branch links to main process lines. Pressure levels in the PN6, PN10, PN16, and 150LB ranges make sure that they meet world piping standards.

Comparing Metal-to-Metal Seated Butterfly Valves with Other Valve Types

Knowing when to choose metal-to-metal seated butterfly valves over other options helps buying managers get the most out of both capital costs and long-term costs.

Metal-Seated vs. Soft-Seated Butterfly Valves

Soft-seated butterfly valves work great with clean fluids at temperatures below 150°C and have lower initial costs. They also seal well on the first installation. Their elastomeric seats, on the other hand, break down quickly when heated and cooled, get harder over time, and fail completely when exposed to aromatic hydrocarbons or oxidising acids. Replacements are usually done every two to five years, but this depends on how well the service is being done.

Metal-seated versions cost more up front, but they don't need to be replaced as often over the course of 15 to 20 years. Because they can handle fluids with solids in them without damage, they are cost-effective choices for slurry uses where soft seats need to be replaced every year. The ability to be fire-safe is useful in dangerous places where soft-seated valves pose too many safety risks.

Metal-Seated Butterfly Valves vs. Ball Valves

Ball valves close better in clean environments and require less power to operate in smaller sizes. Their spherical closure element reduces pressure drop to a minimum, which is good for systems where flow restriction is important. But ball valves are too expensive for diameters larger than DN600 because they weigh a lot more and need strong support structures.

Metal-to-metal seated butterfly valves are much lighter than other types, which lowers the cost of installation for large-diameter uses. A DN1200 butterfly valve is about one-fifth the weight of a similar ball valve. This makes fitting easier and reduces the need for structural support. The shorter face-to-face dimension saves space in piping layouts that are already full. Butterfly valves are better at handling abrasive media because their flow path is more streamlined, which reduces the number of erosion zones. Ball valves are better at tight shutoff for clean fluids.

Common Challenges and Troubleshooting with Metal-to-Metal Seated Butterfly Valves

Even though they are built to last, metal-to-metal seated butterfly valves have problems when they are not used or kept properly. By spotting early warning signs, catastrophic mistakes can be avoided.

Seat Wear and Galling

When metal surfaces cold-weld under pressure, galling happens, which can stop the machine from working. This mostly happens with stainless steel parts in high-purity services that don't have any greasing films. Galling can be avoided by using discs and seats made of different materials, like 316 stainless steel for the disc and hardened 17-4PH for the seat. Surfaces stay clean by going through full stroke rounds every 30 days during normal use. Deposits that help things stick are removed.

During regular tests, higher leakage rates show that there is too much wear. Even on hardened surfaces, abrasive particles in the fluid speed up wear. Putting in upstream strainers catches big particles, and choosing the right material stops erosion. As part of ZTVK's quality control procedures, we use a coordinate measuring machine to check the triple-offset angles. This makes sure that the cam effect works correctly at closure and there is no early contact that speeds up wear.

Leakage Problems

Internal leaking is usually caused by changes in temperature, bad fitting, or contamination on the surfaces that close. Differential expansion is caused by differences in temperature across the valve body, which could bend the seat out of shape. Thermal shock is less likely to happen when processes are heated up before hot fluids are added. Misaligned flanges or nuts that are over-torqued are examples of installation mistakes that cause forces that bend seating surfaces. These problems can be avoided by following the manufacturer's instructions for how to tighten bolts.

Leaks from the outside through stem seals show that the packing is getting worse. Graphite packing is used in these valves. It can handle high temperatures but needs to be adjusted every so often to keep the tightness. Stem safety covers, especially our thicker designs made for dusty areas in the Middle East, keep packing from getting dirty and damaged.

Maintenance Best Practices

Valve life is greatly increased by preventative maintenance. Positive Material Identification testing during the arrival check makes sure that the alloys are right, which stops corrosion problems before they happen. Inspections every six months that look for strange vibrations, changes in operating torque, or corrosion that can be seen on the outside catch problems early. The size of the actuator needs to take into account the seating torque needs of metal seats, because actuators that are too small won't be able to provide the right closing force. Our expert team helps with force calculations to make sure the right actuator is chosen.

Procurement Insights: How to Source Quality Metal-to-Metal Seated Butterfly Valves

Technical needs, shipping times, and the total cost of ownership must all be balanced for buying metal-to-metal seated butterfly valves to go well. Working with manufacturers who have done this before speeds up the process.

Evaluating Supplier Credentials

Compliance with international standards is the basis for evaluating suppliers. ISO 9001 approval shows that you have quality control systems in place, and API 609 Category B compliance shows that your design is ready for tough service. Metallurgy claims are backed up by material approvals that can be tracked back to mill test results. We have modern mechanical processing centers at ZTVK that can do precise machining and are certified in ISO 9001, ISO 14001, and OHSAS 18001 standards.

API 607 fire-safe tests show that the system will work in an emergency. Instead of claims of compliance, you should ask for actual test reports. Leakage class proof through FCI 70-2 Class VI testing shows bubble-tight shutdown capability, which is important for safety and environmental compliance.

Customization Capabilities

Standard catalogue items don't always work perfectly for every situation with metal-to-metal seated butterfly valves. With OEM and ODM capabilities, you can make things fit your needs exactly. Our facility allows for a lot of customisation, such as changing the structure of the valve body, using different sealing materials, and changing the type of link between wafer, lug, and flanged setups. Drawing-based manufacturing makes it possible to match exact dimensions for repair uses.

Production capacity affects how reliably goods are delivered. Standard sizes DN50-DN600 are in stock and can be delivered in 3–7 days for urgent jobs. Customisations that aren't standard take 15–25 days, depending on how complicated they are. When critical path schedules need faster delivery, rush order services with priority production cut the time it takes to 7–10 days.

Logistics and Support

How close you are to shipping places affects both wait times and freight costs. Our office in Tianjin is only 50 kilometres from Tianjin Xingang Port, so it only takes an hour to get to the loading facilities. Long-term relationships with big shipping lines like COSCO and Maersk make it possible to schedule ships reliably. Customs delays at target ports can be avoided by using professional packing that meets ISPM 15 standards.

Technical help is what sets capable sellers apart from common vendors. Help before the sale, like free advice on what to buy, CAD drawings, and 3D models, helps make sure that the right specifications are met. Trust in the quality of the product is shown by an 18-month warranty that covers defects that were not caused by people. Videos and debugging guides for installation cut down on the time it takes to set up, and local expert partners make it possible to get help on-site when problems get complicated.

Conclusion

When used in harsh industrial settings, metal-to-metal seated butterfly valves do important jobs that soft-seated valves can't. Because they can work in high temperatures, don't wear down easily, seal in both directions, and stay fire-safe, they are important for big industrial, petrochemical, and power generation uses. Knowing about design features, choosing the right materials, and proper maintenance methods helps procurement professionals choose valves that have the lowest lifecycle costs and the highest reliability. The success of a project depends on working with skilled producers who can provide full technical help and allow for customisation.

FAQ

1. What industries benefit most from metal-to-metal seated butterfly valves?

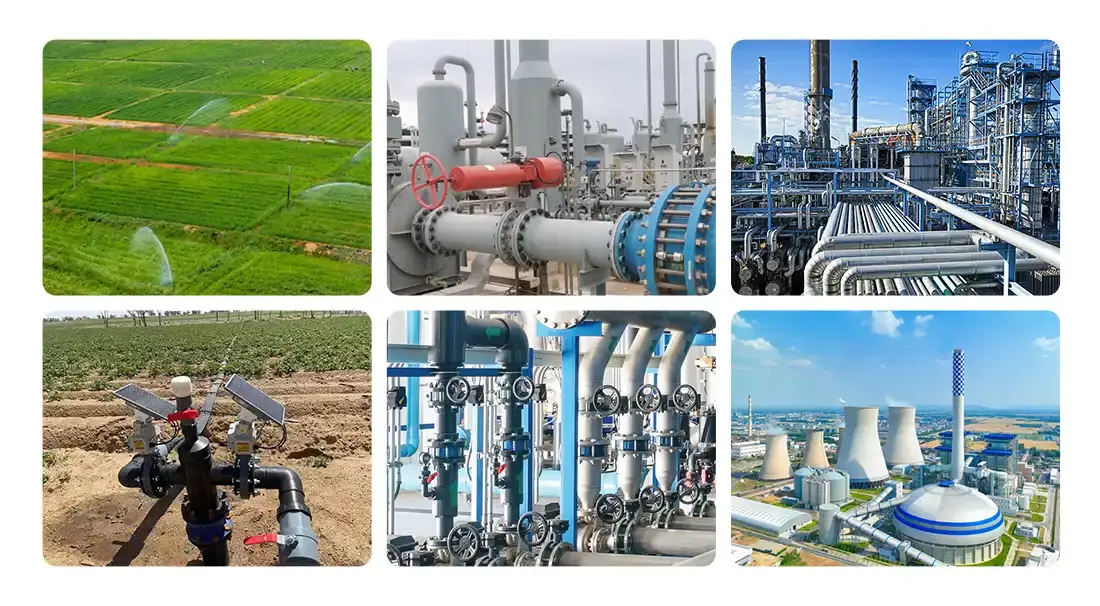

The most benefit goes to petrochemical factories, power plants, and chemical manufacturing plants. In these areas, fluids are handled at very high temperatures and pressures, which makes soft seats fail quickly. The fire-safe design is important for oil and gas operations, while abrasion resistance is important for mining and minerals processing for slurry services.

2. Can metal-seated butterfly valves be repaired?

In fact, metal-to-metal seated butterfly valves can be used for field repair and cleaning. Seats last longer when they are resurfaced by machining or hardfacing overlay restoration. Changing the discs and the packing on the stems are simple repair jobs. Compared to disposable soft-seated versions that need a whole new valve, this ability to be fixed lowers lifetime costs.

3. How do I ensure compliance with pressure and temperature requirements?

Check that the lines on the pressure ratings match or go above the system's design pressure. Check the material certificates to make sure the alloy's makeup is right for the temperature ranges it will be used in. Ask for written results of pressure tests that show how well the product works under rated conditions. Talk to manufacturers that offer engineering support to make sure the product is right for your needs.

Reliable Metal-to-Metal Seated Butterfly Valves Supplier: Partner with ZTVK

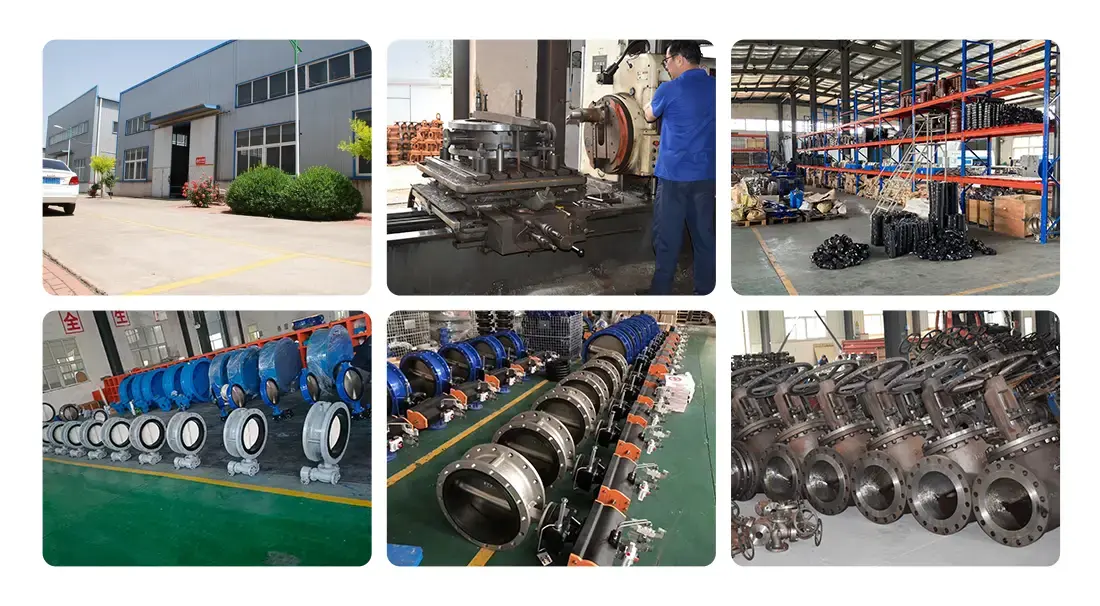

Industrial-grade butterfly valves from ZTVK are made for harsh working situations where dependability can't be compromised. We are a company in Tianjin's Beichen District that has been making metal-to-metal seated butterfly valves for over 15 years. We offer DN50–DN3000 sizes in PN6, PN10, PN16, and 150LB pressure classes. Our triple-offset designs cut actuator force by 30% and provide a service life of 50,000 cycles or more. Different types of materials, like duplex stainless steel 2507 and strengthened seat areas, make it possible to work with both acidic and abrasive media. We can meet tight project deadlines because we keep over 2,000 standard units in stock and can make special orders in 15 to 25 days. You can email our team at ktec86961886@163.com for technical advice, competitive prices on large orders, and samples that show how committed we are to quality.

References

1. American Petroleum Institute (2017). API Standard 609: Butterfly Valves—Double Flanged, Lug- and Wafer-Type, and Butt-Welding End. API Publishing Services, Washington, DC.

2. Smith, P. & Zappe, R. (2015). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application. Gulf Professional Publishing, Houston, TX.

3. Sotoodeh, K. (2021). Industrial Valves: Calculations for Design, Manufacturing, Operation and Safety Compliance. Elsevier Science, Oxford, UK.

4. Nesbitt, B. (2018). Handbook of Valves and Actuators: Valves Manual International. Butterworth-Heinemann, Oxford, UK.

5. Lyons, J.L. & Askeland, F.R. (2012). Piping Systems Manual. McGraw-Hill Education, New York, NY.

6. Zappe, R.W. (2004). Valve Selection and Service Guide. William Andrew Publishing, Norwich, NY.
