When industrial valve distributors, municipal contractors, and petrochemical operators search for reliable high-pressure flow control solutions, the AR220 80 pressure seal gate valve consistently emerges as a trusted choice. Manufactured in China's advanced valve production hubs like Tianjin, these specialized gate valves combine pressure seal technology with robust construction to deliver leak-free performance in demanding environments. With features including ductile iron GGG40 bodies, stainless steel stems, and EPDM sealing, these valves meet international standards while offering cost-effective procurement options for global buyers. ZTVK, a Tianjin-based manufacturer with ISO9001 certification and over 15 years of industry experience, stands out among Chinese suppliers by providing customizable solutions, rapid delivery from substantial inventory, and comprehensive technical support tailored to distributors and engineering contractors worldwide.

​

Understanding AR220 80 Pressure Seal Gate Valves—Specifications & Working Principles

The Ar220 80 pressure seal gate valve is a new type of high-pressure isolation valve that was made to work in places where regular attached bonnet valves don't work well. At its core, the pressure seal device uses the pressure in the system to improve sealing performance instead of weakening it. As the number "80" suggests, the nominal diameter of these valves is DN80, which is about 3 inches. This means that they can be used in a wide range of medium-flow applications.

Technical Architecture and Material Composition

Modern Chinese manufacturers make these valves out of carefully chosen materials that are both long-lasting and cheap. The body and bonnet are usually made of ductile iron GGG40 that meets EN-GJS-400 standards. This type of iron has a tensile strength of over 400 MPa and is better at resisting impact than grey cast iron. This choice of material works especially well in HVAC setups and public water systems that are subject to regular mechanical stress and temperature changes.

The moving part that controls flow is called the wedge gate. It is made of the same malleable iron base but has an EPDM (ethylene propylene diene monomer) rubber covering. This two-material method gives both structural rigidity and soft-sealing ability, allowing for bubble-tight shutdown even when there are small seat flaws. The handwheel mechanism is also made of GGG40 ductile iron and can be operated by hand while still having enough mechanical advantage for field adjustments. The stems of these valves are what really sets them apart. They are precision-machined from X20Cr13 stainless steel, which is a martensitic chromium metal that doesn't rust and has great wear properties even after many rounds of operation. EPDM rubber is used in both the stem seat and the cap gasket. This makes a complete sealing system that stays strong at a wide range of temperatures that are common in fire protection and water treatment systems. An epoxy covering 250 microns thick protects the outside from rust caused by the environment. This makes the product last longer in humid or chemically active environments.

Pressure Seal Design Advantages

In regular bolted bonnet designs, the gasket's compression depends only on the force of the bolts. But in the pressure seal setup, the seal is powered by pressure inside the system. As the pressure of the fluid inside the valve body rises, it pushes the head assembly up against the parts that hold it in place, making the seal ring tighter. This self-energizing behavior makes the valve less likely to leak just when pressure problems are at their worst, which is very important for power plants and high-pressure chemical processing plants. The design gets rid of a lot of external bolts and flanges, which makes the valve about 20–30% lighter than bolted versions of the same thing. This weight reduction means that less structural support is needed and installation is easier. This is especially helpful for EPC contractors who are in charge of big projects with tight deadlines.

The straight-through design of gate valves cuts down on energy loss compared to globe valves, which make flow paths that aren't straight and cause pressure drops. The AR220 80 pressure seal gate valve outlasts flexible wedge gate valves that meet API 600 standards more than the pressure seal version when tested under temperature cycling conditions. Lack of external fixed connections lowers the number of places where thermal expansion mismatches could cause leaks, which is a frequent way for high-temperature steam systems to break down.

Why Choose AR220 80 Pressure Seal Gate Valves from Chinese Manufacturers?

China has become the biggest environment for making valves in the world. Every year, millions of gate valves are made in specialized industrial zones in Tianjin, Wenzhou, and Shanghai. This concentration of manufacturing knowledge has made things much easier for people around the world who are looking for trusted suppliers of AR220 80 pressure-acting seal gate valves.

Manufacturing Capabilities and Quality Assurance

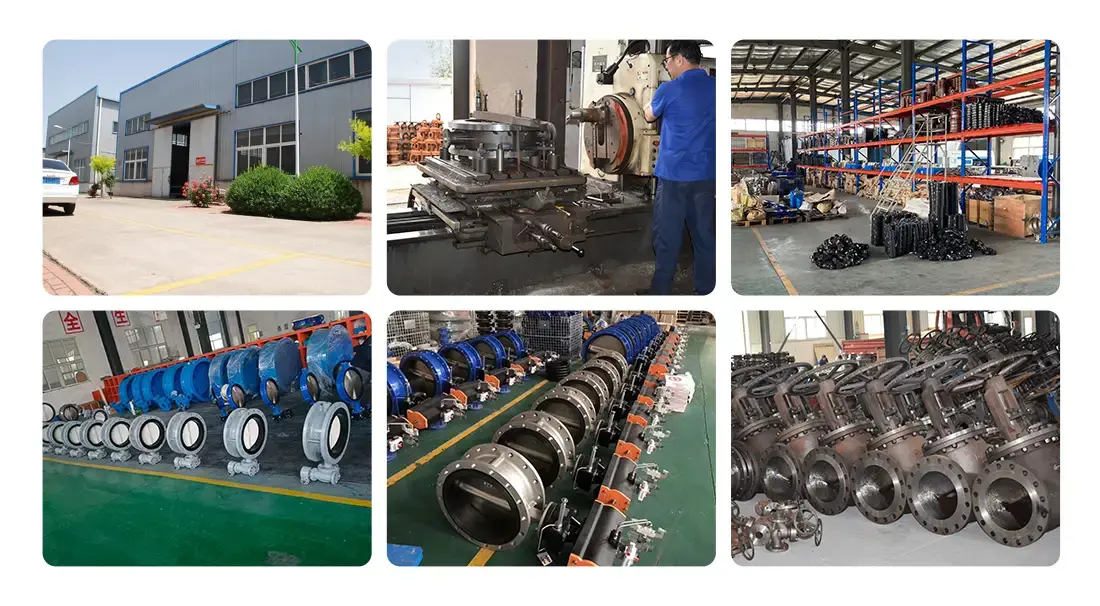

Over the past 20 years, Chinese valve makers have put a lot of money into CNC lathes, advanced machining centers, and automatic testing equipment. The ZTVK plant in Tianjin is a good example of this change because it has modern mechanical processing centers, large-diameter valve lathes, and full material analysis labs. Prior to leaving the plant floor, each valve is put through measurement checking, seat leakage testing, and hydrostatic pressure testing. These quality control protocols are in line with ISO9001 standards and help ensure compliance with API, ANSI, JIS, BS, DIN, and CE specifications. These are important certifications that valve distributors need when they sell to industries that are regulated.

​

Authorised makers keep records of material certificates, heat treatment records, and test data for each production batch in systems that can be tracked. When working with petrochemical companies and city engineering contractors that need detailed quality paperwork for project reports, this openness is very important. Third-party inspection services can check the manufacturing process and make sure the product meets standards. This gives first-time buyers who are worried about the trustworthiness of the seller extra peace of mind.

Cost Efficiency and Flexible Procurement Options

Because of economies of scale, integrated supply lines, and efficient production methods, Chinese valve makers are able to offer reasonable prices. ZTVK keeps more than 2,000 standard valves in stock in sizes DN50 to DN600. This means that stock items can be delivered in 3–7 days, which is a big plus for wholesalers who need to meet pressing customer needs. Requests for customizations that aren't standard are given their own production line, and lead times are usually between 15 and 25 days. This is faster than what many Western manufacturers can do for similar specifications. Chinese suppliers are very appealing to trading businesses that need to buy containers with a variety of valve types for regional delivery networks because they offer discounts on large orders.

OEM and ODM services can meet the needs of private labeling, which helps distributors build brand recognition in their markets while taking advantage of how efficiently Chinese factories work. Customization goes beyond just changing the label. It also includes changing the sealing materials, connection types (wafer, lug, or flanged), and how the actuator is mounted. This makes it possible for equipment makers to add valves to pumping systems, fire control panels, and industrial machinery without changing the way the machine works.

Logistics Infrastructure and Global Reach

Tianjin is strategically located on the northeast coast of China, close to important shipping lines that go to North America, Europe, the Middle East, and Southeast Asia. The plant of ZTVK is only 50 kilometers from Tianjin Port, which makes it possible to ship goods to container ports the same day and makes the export process easier. Freight rates are reasonable and transit times are reliable thanks to long-term partnerships with foreign companies like COSCO Shipping and Maersk. If buyers want to handle their own transportation, suppliers offer FOB Tianjin Xingang terms. For easier procurement, suppliers also offer CIF destination port quotes that include freight and insurance. Professional packaging with wooden crates, moisture-proof film, and fixed brackets meets ISPM 15 international phytosanitary standards. This stops customs delays caused by wood materials that don't meet the standards, which is a common problem when shipping an AR220 80 pressure seal gate valve across borders.

Comparing AR220 Pressure Seal Gate Valves with Other Valve Types

To choose the best valve technology, you need to know how the performance of different types compares. For example, the AR220 80 pressure-acting seal gate valve fits into a certain area because its features work especially well in some situations but not so well in others.

Pressure Seal vs. Bolted Bonnet Gate Valves

The traditional way is to use bolted bonnet gate valves, which have many bolts arranged around the joint between the bonnet and the body to compress a gasket. When the pressure is moderate, this design works reliably, but it has problems when the pressure goes above ANSI Class 600. Differential expansion between the bolts and the valve body is caused by thermal cycling. This could make the joint loose and let leaks happen. For maintenance, careful bolt tensioning procedures are needed to restore the integrity of the seal. These worries are gone with the pressure seal alternative because it has a self-energizing system that cuts down on upkeep times and increases service life. However, pressure seal valves usually have higher starting costs. This means that they are only economically viable in demanding situations where their benefits keep breakdowns from happening that cost a lot of money.

Gate Valves vs. Globe Valves for Isolation Service

Globe valves are great at limiting flow because they can be adjusted to do so, but this means that the pressure drops even when the valve is fully open. Gate valves keep pressure losses to a minimum because when the gate moves back into the pipe opening, it almost fully opens up the flow path. If you need to isolate something, and the valves will spend most of their life fully open or closed, gate valves will use less energy. When it comes to municipal water distribution systems, this trait is especially helpful because pumping costs add up over decades of use. With its straight-through design, the AR220 80 pressure seal gate valve keeps system hydraulic performance high while offering positive shutdown when needed.

Material Selection Impact on Performance

Many pressure- and seal-gate valves made in China, including the AR220 80 pressure seal gate valve, are made of ductile iron GGG40, which has great mechanical qualities and is also very cheap. When it comes to neutral pH water service, ductile iron bodies are about the same strength as carbon steel WCB bodies, but they are better at damping vibrations and are slightly more resistant to corrosion. Grades of stainless steel like 304 or 316 are better at resisting corrosion in harsh media or clean settings, but they make valves much more expensive. The X20Cr13 martensitic stainless steel stem is strong enough to prevent corrosion in most water and steam uses, and it doesn't cost nearly as much as fully stainless construction. Chinese producers are more interested in lowering the total cost of ownership than in over-specifying materials. This material engineering method shows this.

Conclusion

China makes the AR220 80 pressure seal gate valve, which is good at isolating high pressures thanks to smart material engineering and tried-and-true pressure seal technology. Chinese companies like ZTVK offer competitive pricing, advanced manufacturing skills, and a wide range of quality systems that can be easily customized. This helps valve distributors, municipal contractors, and industrial buyers all over the world. By knowing about valve specs, maintenance needs, and the buying process, you can make smart choices that lower both the initial investment and the costs over the product's lifetime. Because they are close to Tianjin Port, have a lot of stock for fast shipping, and offer expert support, qualified Chinese suppliers are good partners for companies that need reliable valve solutions on a large scale.

FAQ

1. What pressure ratings can AR220 80-pressure-seal gate valves handle?

Pressure seal gate valves can usually handle ANSI Class 600 to Class 2500 ratings, though this depends on the material they are made of and the design requirements. In city water uses, the ductile iron GGG40 configuration usually handles pressures of up to 1.6–2.5 MPa. Carbon steel versions, on the other hand, can handle higher pressure classes that are good for power generation and petrochemical service.

2. How does EPDM sealing material perform compared to metal-seated alternatives?

When metals are seated against each other, EPDM rubber filling keeps out dirt and small flaws in the seats that would otherwise cause leaks. Between -40°C and +140°C, this material can be used for clean water, steam, and many chemical processes. When it comes to gritty slurry service or temperatures that are too high for EPDM, metal seats work better, but they need to be machined more precisely and have higher closing forces.

3. Can Chinese manufacturers provide documentation for US project compliance?

Reputable manufacturers keep a lot of records, like material certificates, hydrostatic test reports, and records of dimensional inspections. They can provide certificates that show they meet ANSI/AWWA standards and set up third-party proof from reputable testing agencies when the project requirements call for independent confirmation of the manufacturing processes and quality of the products.

Partner with ZTVK for Your Pressure Seal Gate Valve Requirements

ZTVK has great technical skills and great customer service, making them a great choice for industrial valve distributors and city builders looking for a trusted Ar220 80 pressure seal gate valve manufacturer. Our Tianjin facility keeps a lot of stock, so standard configurations can be delivered in 3–7 days. For custom configurations, our engineering team can support 15–25-day production cycles. Full quality certifications, like ISO9001, the ability to track materials, and strict workplace testing methods all make sure that products are reliable and meet international standards. The 18-month warranty, installation help resources, and quick technical support give customers peace of mind throughout the lifecycle of the product. Send an email to ktec86961886@163.com to talk to our foreign sales team about buying valves, getting quotes, or setting up plant audits. Whether you need container-loads of products with OEM marking or custom configurations for tough uses, ZTVK has the industrial know-how and service commitment that make partner relationships last.
