What is the function of a metal-to-metal butterfly valve?

A metal-to-metal butterfly valve serves as a critical flow control device designed to manage fluid and gas streams in high-pressure, high-temperature, or abrasive industrial environments. Unlike soft-seated designs that rely on elastomeric materials, this valve employs a metal disc and metal seat that create a secure seal through precision engineering, often utilising a triple-offset geometry. The primary function involves opening, closing, or throttling flow pathways while maintaining tight shut-off capabilities, even when subjected to extreme operational conditions. This robust sealing mechanism prevents leakage and ensures long-term reliability in demanding sectors such as petrochemical processing, power generation, and municipal water infrastructure projects.

​

Understanding Metal-to-Metal Butterfly Valves: Function and Design

Controlling flow precisely is what metal-to-metal butterfly valves are all about. The disc inside the valve body spins 90 degrees when the handle is turned or an actuator is pressed. This moves the disc from fully open to fully closed states. This quarter-turn action lets you respond quickly, which cuts down on downtime during maintenance or emergencies.

How Does the Metal Sealing Mechanism Work?

The connection is made when the disc edge and seat ring touch each other metal-to-metal. When the valve closes, the disc presses against the seat at an angle, creating contact pressure that stops flow. This design is torque-seated, so it doesn't use fluid pressure to achieve bubble-tight shut-off. It meets ANSI/FCI Class V or VI leaking standards. The triple-offset design stops grinding while in use, which means that in most cases, the part will last longer than 50,000 rounds.

Key Components and Material Selection

Valve bodies can be made from ductile iron (GGG40/50), carbon steel (WCB A216), stainless steel (SS304/316/SS304L/SS316L), or duplex stainless steel (2507/1.4529), depending on the needs of the media they will be used with. Nickel-lined ductile iron, carbon steel, or different stainless alloys can be used to make discs. The metal and soft graphite in the seat work together to make it strong and flexible, even when the temperature changes. The sizes that are available range from DN50 to DN3000, and the pressure ratings range from PN6 to PN16 and 150LB.

Getting procurement teams to specify the right valve configuration is easier when they understand these design elements. Engineers who are looking at system needs can fit temperature ranges (-196°C to +815°C) and pressure limits to the needs of the project. This makes sure that the system works with the pipelines that are already in place.

Actuation Options for Different Applications

Based on what they need to automate, operators pick from handworm gears, electric motors, or pneumatic systems. Worm gear operators work best in situations where control needs to be done by hand and where bigger valves are needed. Electric actuators let you control things from afar and connect them to SCADA systems, while pneumatic actuators make sure that safety-critical installations respond quickly. Because of this, the same valve body can adapt to changing operational needs without having to be replaced completely.

Benefits and Applications of Metal-to-Metal Butterfly Valves

A lot of good things come from metal-to-metal butterfly valves in industrial buildings that work in harsh conditions. These valves solve problems that make soft-seated alternatives fail early, leading to measurable increases in system uptime and maintenance intervals.

Superior Temperature and Pressure Tolerance

It's expensive to repair soft seats over and over again when they get too hot (above 200°C). Metal seats in metal-to-metal butterfly valves can handle temperatures that are higher than 500°C for long periods of time and steam without breaking down. Pressure ratings of up to ASME Class 2500 (PN420) allow them to be used in places where rubber seals would fail or extrude, like high-pressure steam lines, chemical reactors, and industrial processes. This thermal stability stops unexpected shutdowns and lowers the cost of keeping extra parts on hand.

Enhanced Durability in Abrasive Service

Slurries, fluids with particles in them, and erosive media wear down rubber or PTFE seats very quickly. Metal seats, especially those that have been hardened with Stellite alloy coatings, don't wear down easily and keep their sealing integrity for years. Longer periods of time between overhauls lower the total cost of ownership for mining operations, ash handling systems, and wastewater treatment plants. The disc movement that doesn't rub against anything stops galling and early wear patterns that happen with regular designs.

Critical Industry Applications

These valves are used in oil and gas facilities to control the wellhead, isolate pipelines, and move process streams through the plant. They help chemical plants handle acids, liquids, and high-temperature reactants that can damage things. They are put in boiler feedwater systems, steam turbine bypass lines, and flue gas desulfurisation units by power plants. They are used in main distribution lines, pump stations, and backwash systems that are part of the water treatment infrastructure. Their dependability has a direct effect on the continuity of public service.

For fire protection networks that need to work reliably in an emergency, municipal engineering contractors choose metal-seated valves. They are used by HVAC systems in big businesses to control cold water and hot water loops with little care. These real-life examples show how choosing the right valve has a direct effect on working efficiency and safety compliance in a wide range of fields.

Metal-to-Metal Butterfly Valve Comparison: Making the Right Choice

To choose between valve types, you have to compare their performance to the project's requirements. Some of the things that go into the decision are the expected service life, the budget, and the closing class standards.

Metal-Seated vs. Soft-Seated Designs

Soft-seated valves are cheaper to buy at first and close well in clean, low-temperature applications below 80°C. They easily achieve bubble-tight shut-off, but in harsh settings, the seats need to be replaced often. Metal-to-metal butterfly valves cost more up front, but they offer better long-term value through longer service intervals and a wider range of uses. When soft seats need to be replaced every year because of high temperatures or rough conditions, the break-even point usually happens within two to three years.

Comparison with Other Valve Types

Gate valves allow full-bore flow with little pressure drop, but they take longer to install and need more room. Ball valves can be turned quickly and seal well, but they can't be used in sizes bigger than DN600 because they need a lot of torque and are expensive. Butterfly valves are great for setups with limited room because they are small, light, and easy to use. The flat face-to-face dimension makes the piping system simpler and cuts down on the cost of labour for installation.

Material and Certification Priorities

For face-to-face measurements, procurement requirements should use API 609 Category B, API 607/ISO 10497 for fire safety, and ASME B16.34 for pressure-temperature values. Material certificates that confirm the chemical composition and mechanical properties of a part keep it from being a fake. Third-party testing reports that confirm leakage rates and cycle life give users confidence that valves live up to their performance claims. To meet the requirements of the quality management system, buyers who work with regulated industries need to check that the suppliers have ISO 9001, ISO 14001, and OHSAS 18001 certifications.

​

Procurement Insights: Buying Metal-to-Metal Butterfly Valves for B2B Clients

Sourcing strategies that work well balance technical requirements with business needs. Distributors and trade firms that serve area markets need sellers who know both what metal-to-metal butterfly valves need to do and how to get them to the customers.

Supplier Qualification and OEM Capabilities

Controlled production processes help manufacturers with in-house machining centres, CNC lathes, and other large-diameter processing tools keep the quality of their products high. Chemical research labs and pressure testing facilities make sure that performance standards and material requirements are met. To help distributors place themselves in the market, look for OEM services that include custom branding, packing, and nameplate designs. With ODM, valves can be changed to meet the needs of specific regions. For example, coastal sites can get better corrosion protection, and high-vibration areas can get stronger parts.

Pricing Factors and Bulk Order Benefits

Prices are based on the cost of the materials used. For example, carbon steel and ductile iron are less expensive than stainless steel and duplex alloys. Valve size has a direct effect on unit cost, and costs go up rapidly above DN1000 because casting is harder and takes longer to machine. Certification requirements add costs because they need to be tested and documented by a third party. By making production more efficient and negotiating freight rates, buying in bulk lowers the cost per unit. When distributors buy regular sizes in bulk of 50 or more units, they usually get 15 to 25 per cent off the small-lot price.

Lead Times and Inventory Management

From stocked inventory, standard configurations in common sizes (DN50–DN600) ship within three to seven days, helping distributors meet their order fulfilment goals. Custom requirements take 15 to 25 days, based on how complicated they are. For extra money, you can choose quick production to get them to you faster. Being close to major shipping ports cuts down on freight lead times and makes export logistics easier. Facilities close to Tianjin Port can use consolidated shipping services that make it cheaper for foreign sales to ship each unit. These benefits in the supply chain have a direct effect on how competitive distributors are in markets where prices are important.

Technical Support and After-Sales Service

Distributors can choose the right valve options for end-user use with the help of pre-sales engineering. CAD plans and 3D models make planning integration and showing customers what you've done easier. An 18-month warranty covers problems with the way the product was made, and repair rules keep customers from having to wait too long. Videos that show how to install things and documents that explain how to fix problems make it easier for distributor service teams to provide technical support. Manufacturers with regional service partnerships offer on-site commissioning help and spare parts, which increases the value that end customers get from their distributors of metal-to-metal butterfly valves.

Conclusion

Metal-to-metal butterfly valves are very important in controlling the flow of fluids in factories because they can handle high temperatures, high pressures, and rough media that soft-seated valves can't handle. Metal disc and seat interfaces are precisely engineered to provide stable shut-off performance over long service intervals. This lowers maintenance costs and unexpected downtime in the industrial, petrochemical, and power generation sectors. Knowing the design principles, available materials, and operational capabilities of a valve helps you make smart purchasing decisions that match the valve's specifications to its actual service needs. Distributors and contractors can get more done when they work with qualified makers who offer full technical support, open customisation, and quick solutions for the supply chain.

FAQ

1. What is the expected lifespan of a metal-seated butterfly valve?

Metal-to-metal butterfly valves can usually handle 50,000 to 100,000 cycles of operation under normal service conditions. This means that systems that are well taken care of will last 10 to 15 years. How long something actually lasts relies on the type of media used, how often it is used, and how well it is maintained. The upper part of this range is for valves that handle clean fluids and little temperature cycling. On the other hand, seal rings may need to be replaced every so often in gritty or temperature cycling applications.

2. Can these valves handle corrosive or abrasive media effectively?

When made from the right alloy grades, metal seats work great in places where corrosion is a problem. Chloride stress corrosion can't happen on duplex stainless steel (2205/2507), and nickel-lined discs protect against acidic media. Abrasive slurries need Stellite-hardened sitting surfaces that stay stable in size even when erosive particles hit them. Using chemical compatibility charts to help you choose the right materials will ensure that they work well for the whole service life.

3. Do metal-to-metal butterfly valves meet international leakage standards?

When made to API 609 Category B standards, good valves meet ANSI/FCI 70-2 Class V or VI bubble-tight shut-off. Fire-safe certifications according to API 607 and API 6FA show that the seal is still good during thermal emergencies. These standards should be clearly stated in the procurement specifications, and third-party test certificates should be requested to prove compliance. This is to make sure that the products delivered meet operational requirements.

Partner with ZTVK for Reliable Metal-to-Metal Butterfly Valve Supply

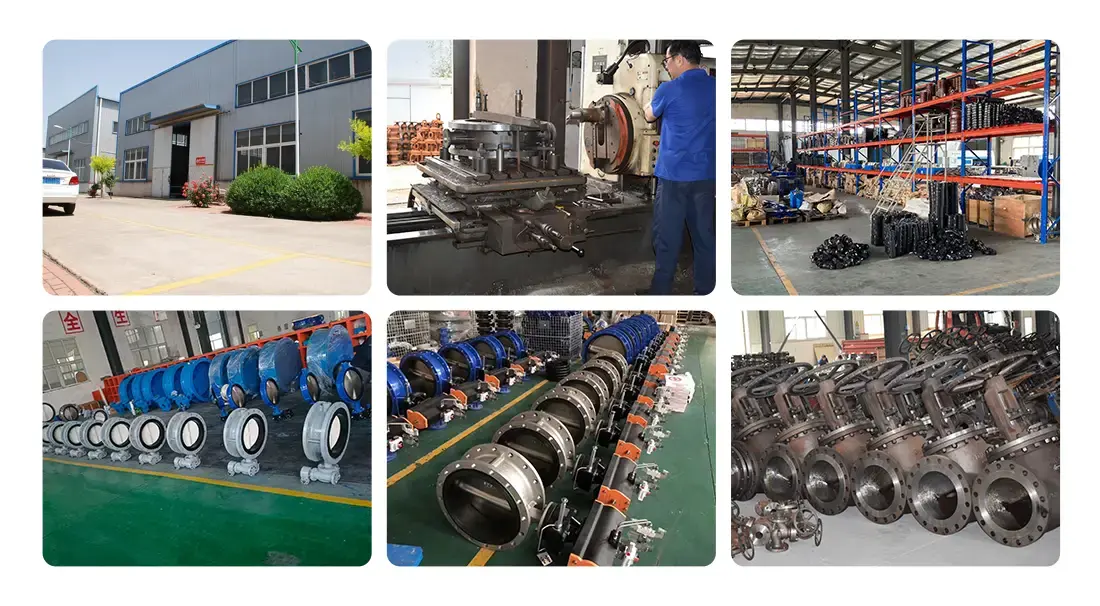

ZTVK is a reliable company based in Tianjin's Beichen District that provides metal-to-metal butterfly valves to industrial contractors and distributors around the world. We have modern CNC machining centres and specialised large-diameter processing equipment in our factories. This lets us make valves from DN50 to DN3000 in a range of materials, from carbon steel to duplex stainless alloys. Our quality management systems are certified by ISO 9001, ISO 14001, and OHSAS 18001, and we follow foreign standards by being in line with API and ANSI. We keep more than 2,000 standard units in stock so that we can quickly send them in three to seven days. Custom orders take fifteen to twenty-five days to finish. We are conveniently located only 50 kilometres from Tianjin Port and offer fast FOB and CIF shipping through long-term partnerships with major goods companies. Custom nameplates, packing, and technical changes made by OEM and ODM services help you meet your business needs. Get in touch with our team at ktec86961886@163.com to talk about your requirements with a provider that cares about quality, speed, and low prices.

References

1. American Petroleum Institute. API Standard 609: Butterfly Valves: Double Flanged, Lug- and Wafer-Type. Washington, DC: API Publishing Services, 2020.

2. American Society of Mechanical Engineers. ASME B16.34: Valves—Flanged, Threaded, and Welding End. New York: ASME Press, 2021.

3. Lyons, Jerry L., and William C. Askland. Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application. Oxford: Gulf Professional Publishing, 2019.

4. Smith, Peter, and R.W. Zappe. Valve Selection Handbook: The Definitive Guide to Understanding Valves and Applications. Houston: Elsevier Science, 2018.

5. Nesbitt, Brian. Handbook of Valves and Actuators: Valves Manual International. London: Professional Engineering Publishing, 2017.

6. Skousen, Philip L. Valve Handbook. New York: McGraw-Hill Education, 2022.
