What are the sealing materials for electromagnetic butterfly valves?

One of the most important parts of a solenoid-operated butterfly valve that people often forget about is the closing material. When the pressure is high, the valve may leak, but it may also be able to handle chemicals and keep working even when the temperature changes. When the valve closes, the elastomer or plastic covers squeeze the valve disc and body together tightly. This is the main way that solenoid-operated butterfly valves work. Sealing materials that are often used are EPDM, NBR, PTFE, and Viton. Each is made to work with a certain kind of material, at a certain temperature, and under a certain amount of pressure. Sourcers and project engineers need to know a lot about the material because picking the wrong seal can lead to early failure, costly downtime, and safety risks.

​

Understanding Sealing Materials in Electromagnetic Butterfly Valves

Sealing materials are the first line of defence against leaks in automatic valve systems. When the disc is closed, their main job is to make a stop that doesn't leak air. In this way, the pressure stays the same in both the pipes that are upstream and downstream. These materials must not only not leak but also be able to handle chemical attacks from process fluids, changes in temperature, and wear from being used over and over again.

What Are the Most Common Sealing Materials?

Most of the time, elastomers and fluoropolymers are used to close solenoid-operated butterfly valves. Based on how the service is set up, the right one is picked. Because it doesn't break down in cold weather and can be used in temperatures ranging from -40°C to 120°C, EPDM is great for water, steam, and weak acids. NBR doesn't cost much and doesn't wear out easily, so it works well with fuels, oils, and fluids that are made from petroleum. Ozone or temperatures above 100°C, on the other hand, break it down. PTFE is one of a kind because it can handle almost any chemical and heat up to 200°C. It is an important part of both harmful chemical processes and medicines because of this. Because it can work at temperatures up to 200°C and still be bendable, Viton (Fluorocarbon Elastomer) is the best material for places with acids, chemicals, oils, and high temperatures.

How Sealing Materials Affect Valve Performance

It is important for buying teams to know that the type of seal material they choose can change a number of performance factors. The kind of chemicals used with a seal determines how long it lasts. In an acidic environment, for example, NBR will quickly break down and not work. The temperature range sets the upper and lower limits of what can be done. The seal may harden, crack, or soften if these limits are crossed. The wear resistance tells you how many times you can use the valve before the cover needs to be changed. In high-frequency robotic devices, this is very important. Cost is also important. PTFE and Viton seals generally cost more, but they may lower the total cost of ownership by making it longer before they need to be fixed. When engineers know about these trade-offs, they can make sure that the seal fits the budget, job cycle, and amount of fluid.

Core Principles Behind Selecting Sealing Materials for Solenoid-Operated Butterfly Valves

It is not always possible to pick the best wrapping material. It depends on the work environment, what kind of material will work well, and last a long time.

Fluid Characteristics and Compatibility

Based on the chemicals in the process fluid, the cover that should be used is the most important thing for a solenoid-operated butterfly valve. Corrosive chemicals, such as sulphuric acid or sodium hydroxide, can't break down things that are made of chemically neutral materials, such as PTFE or Viton. The best seats are made of harder elastomers or metal backs that don't wear down easily in rough slurries or fluids with solids in them. Even things that seem safe, like water that you can drink, need to be carefully thought out. One thing that can hurt NBR seals is chlorine. That's why EPDM is a better choice for public water lines. It is very important to know the pH, concentration, and whether there are any chemicals or oxidisers in the fluid during the classification process.

Pressure, Temperature, and Operating Conditions

As the working pressure and temperature change, sealing materials are put under loads of both force and heat. Seals need to be strong enough to stop growth through gaps when they are used with high pressure. If the pressure is low, on the other hand, softer materials might work better because they need less force to close. In very high or very low temperatures, elastomers may not be as flexible. For example, temperatures below -20°C can make seals stronger, which means they need more force, and temperatures above the stated limit of the material speed up the ageing process and loss of flexibility. It's also important to cycle regularly. Because valve parts are opened and closed thousands of times a day, they wear out faster. To make them last longer, use materials like Viton or strengthened PTFE.

Standards Compliance and Certification

Seals are safe and right for the job because they meet standards and approvals from all over the world. For use in food, drinks, and potable water, it needs to be approved by the FDA or NSF. ISO 9001 certification shows that the production process has good quality control. Both API 609 and ANSI/ASME B16.34 spell out the size and performance needs for industrial valves, like how fast the seat leaks. ATEX or IECEx certification may be needed for valves that work in places that could be risky. OEM customers and foreign suppliers should check that the sealing materials they use are allowed in their home countries. This way, there won't be any issues when the project starts or the product is sold again.

​

Types of Solenoid-Operated Butterfly Valve Seals and Their Industrial Applications

Because of how it works, each sealing material is best for a different set of businesses and uses.

EPDM Seals for Water and HVAC Systems

A lot of fire safety systems, HVAC cold water loops, and systems that clean city water use EPDM seals. They can handle water, steam, and mild chemicals, which makes them great for delivering drinking water, where durability and safety are key. Even when it's -40°C outside, EPDM doesn't break. It can also take the chlorine and chloramine that are used to clean water. EPDM is popular among HVAC contractors because it is simple to maintain and can be used with glycol-based heat transfer fluids.

NBR Seals for Petroleum and Industrial Fluids

When it comes to cost, NBR seals are the best choice for use in oil and gas, cars, and most other industries. They work well with fuel, gasoline, hydraulic oils, and lubricants. They are strong when pulled apart but not when worn down. Most of the time, refineries and petroleum firms ask for NBR to be used for hydrocarbon work that is not important at temperatures below 90°C. This stuff is easy to find and doesn't cost much, so it's good for making lots of valves. But you should know that it can't work well with flammable oils and oxidising agents.

PTFE Seals for Chemical and Pharmaceutical Processes

Chemicals can't damage PTFE seals, and they have to meet high cleanliness standards. Because it doesn't mix with most process chemicals, PTFE is used by drug companies to keep their goods clean and the same from batch to batch. It is important for chemical plants that use strong acids, bases, and liquids that their seals don't fail in a bad way. The material has a low friction coefficient, which lowers the operating force. This makes the actuator last longer. PTFE needs to be carefully constructed because it is more expensive and can cold flow under pressure. However, it works best in harsh settings. When checking Dimensions of electromagnetic butterfly valve units, procurement teams must ensure that the face-to-face dimension, flange bolt circle, and disc clearance align with existing piping specifications, as PTFE-lined models may have slightly thicker seating profiles that affect overall valve length and installation fit.

Viton Seals for High-Temperature and Harsh Environments

Oil companies, chemical plants, and power plants are all places where temperatures are above 150°C and fluids contain aromatics, ketones, and acids. These places must have Viton covers. The material is the standard for uses that come after oil because it doesn't change shape when exposed to fuels and stays stable at high temperatures. Different kinds of seals would break down quickly in gas processing plants when they have to deal with bad gas that includes hydrogen sulphide. When it comes to important things, Viton is worth the extra money because it lasts longer and is more reliable than other materials.

Maintenance, Troubleshooting, and Longevity of Sealing Materials

When seals are maintained regularly, they last longer and don't break down without notice, which can stop things from going on. As part of regular cleaning, you should look at the surface to see if it's breaking, getting stiff, or if the seal is sticking out past the valve body. Strong acids that break down elastomers should not be used to clean. Most of the time, water and mild soaps are safe. It is easier for things to move when the valve shaft and joints are regularly cleaned. This stops sudden changes in force that could hurt seals while the machine is running.

Recognizing and Diagnosing Seal Failures

Leaks at the seat contact, needing more force to move, and not being able to turn off are some of the most common signs of failure. When something cracks or swells, it means that heat or ozone is hurting it. When something is chemically incompatible, it doesn't work well with other things. When a material gets stiff or loses its flexibility, it means it has been used at temperatures above what it was designed for. To figure out what went wrong, you need to look at both the seal and the atmosphere where the work was done. The failure could have been caused by changes in the type of material, its temperature, or its pressure.

Best Practices for Seal Replacement

When seals are changed on time, small leaks don't get worse and become big issues. The best way to be sure that the sizes and materials are right is to find OEM-approved new seals. Buying private ones can be risky. Plans for replacement shouldn't be made on the spot; they should be based on check results, cycle numbers, and the amount of time the fluid is in touch with the part. Not having enough of certain seals can slow things down during turnarounds. The institution learns more by keeping track of seal changes and failure modes. This changes the materials used in the future and makes all valves more reliable.

Conclusion

For solenoid-operated butterfly valves to work well, the materials they are sealed with are very important. They have a direct effect on how long they last, how well they stop leaks, and how well they stand up to poisons. Because they can handle different temperatures and fluids, EPDM, NBR, PTFE, and Viton are all used in various ways. Buyers and engineers need to think about how the seals will be used, any rules that need to be followed, and the total cost of ownership when they choose them. For long-lasting reliability, it's best to do regular maintenance, repair things when they break, and only buy from trusted manufacturers. Industrial buyers can lower their risks, cut down on downtime, and get the best total cost of ownership in many fields if they work with experienced providers and make sure the seal they choose fits the needs of the application.

Frequently Asked Questions

1. Can I use the same sealing material for both water and oil applications?

The things you use to seal must be the same as the liquids. NBR works well in oil but not so well in water that has a lot of chlorine in it. EPDM works well in water but breaks down in oil. Always check to see if a seal material is chemically suitable before you choose it.

2. How often should I replace seals in a solenoid-operated butterfly valve?

How often to replace something depends on how many rounds it goes through, what kind of fluid is used, and how it is used. High-frequency valves might need to be changed every year if they are used with harsh fluids. Low-duty valves, on the other hand, can last five years or more if they are used with clean fluids. Setting plans is not the best way to figure out when to replace things; regular checks and keeping track of how they're working are.

3. Are PTFE seals compatible with all actuator types?

PTFE covers can be used with gas, electric, and hydraulic tools. The seal material doesn't affect the choice of actuator, but PTFE may need less force, which means smaller actuators can be used.

4. What certifications should I look for when buying seals for potable water valves?

Look for NSF/ANSI 61 approval if you want to use it with drinking water. For uses that are safe for food, look for FDA approval. Find ISO 9001 if you want to keep an eye on quality. All of these checks make sure that the seal's material is safe for people to eat.

How to Choose and Buy the Right Electromagnetic Butterfly Valve Seal for Your Application

You have to find a mix between scientific needs, wait times, and price limits in order to get things done in the procurement process. To make sure that the type of fluid, temperature, and pressure all work together, you need to use manufacturer datasheets and market standards. They should ask for material approvals, pressure test results, and cycle life data to make sure that performance promises are true.

Companies that make reliable valves offer full expert support to help customers choose the right closing materials for their jobs. You should find ISO 9001, API 609, and approvals for specific uses, like FDA or ATEX, in your certification packages. To keep projects on track, it's important for leads to keep track of their time. For instance, you should think about how long it will take to make unique seals out of strange materials and how many standard seals you already have on hand. You can avoid a false economy by weighing the initial cost against the value over time. For instance, a low-cost seal that breaks quickly costs a lot more in repairs and downtime than a high-quality one that doesn't need to be replaced for years.

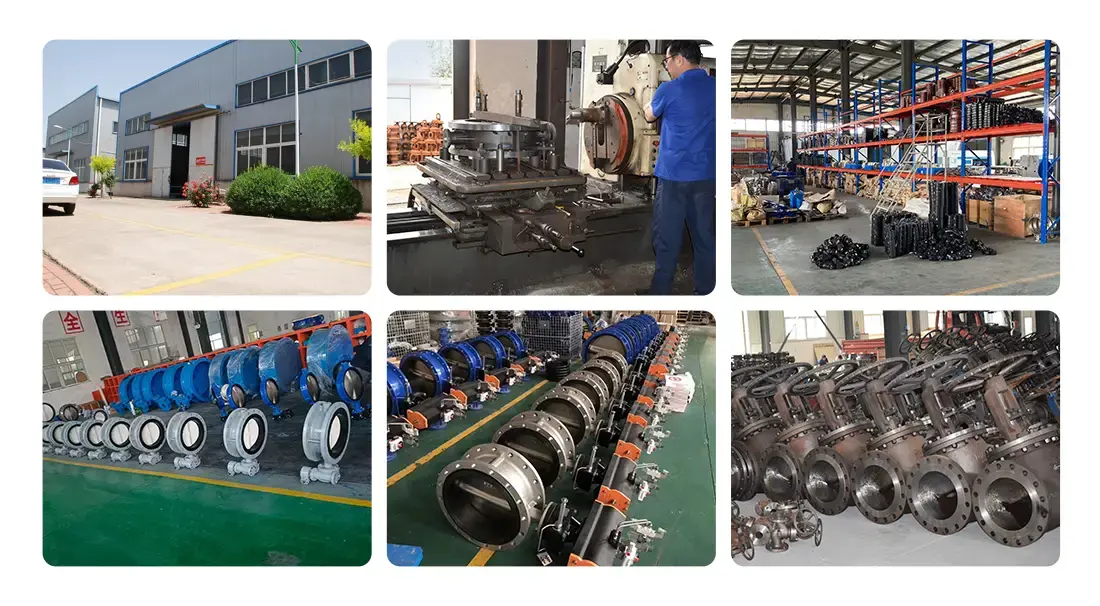

It's not just a technical matter for us at ZTVK to choose the right covering material. It's also a strategic matter that affects the project's success and the long-term costs of running it. Our company has been making valves for over 15 years. For your needs, we can make solenoid-operated butterfly valves with seat materials such as EPDM, NBR, PTFE, and Viton. We keep more than 2,000 standard units in stock in Tianjin's Beichen District. These range in size from DN40 to DN1200. For important work, this means we can finish in 3 to 7 days. We offer OEM tailoring, which means you can pick the exact seal materials, actuator shapes, and connection standards (ISO5211, PN10/PN16, ANSI 125/150LB) that you need. We make sure that our products meet international standards like ISO 9001, API 609, and more. They have been checked out by a third party and can be fully tracked. There is no difference between an EPC contractor looking for a reliable project supply and a valve wholesaler looking for good bulk prices. Our expert team is ready to help you choose the right materials, do custom engineering, and get support after the sale. You can email us at ktec86961886@163.com to talk about the sealing materials you need and learn how ZTVK can become the company you always turn to for solenoid-operated butterfly valves.
