Stainless shut off valve: what they are and where they're used

Knowing how to choose the right separation device is very important when you need to have full control over the flow of fluids or gases in industrial pipes. A stainless shut off valve is a precision-engineered flow control part made from austenitic stainless steel alloys, usually CF8 (304SS) or CF8M (316SS). It is made to provide secure on/off separation in systems that need it. Unlike regulating devices, these valves focus on a bubble-tight seal and low pressure drop. They solve common problems in industries such as rust from harsh chemicals, contamination in clean settings, and structural damage in high-pressure settings. Their inactive chromium oxide layer makes them reliable over time, even when regular carbon steel valves break.

​

Understanding Stainless Shut Off Valves

What Makes Stainless Steel Valves Different

Because of how they are made, stainless shut-off valves are different from brass or carbon steel options. The chromium makes an oxide layer that heals itself and is resistant to oxidation and chemical attack. ZTVK's valves are made from LCB, WCB, CF8, CF8M, CF3, and CF3M body materials, each chosen for its own set of working conditions. The CF8M version, which has 2% to 3% molybdenum, is very resistant to chloride-induced pitting, which is a common way for materials to fail in marine and desalination settings.

Different styles have different ways of working. To close all the way, ball-type models turn 90 degrees, while gate models lift a block perpendicular to the flow. Around the globe, a disc that looks like a plug moves against the flow direction. Each type is better for a different purpose: ball valves can turn quickly in a quarter turn, gate valves keep pressure drop to a minimum when fully open, and globe valves offer better throttle control when partly open. Knowing these differences helps buying teams match the design of valves to the needs of the system.

Technical Architecture and Performance Standards

Modern stainless steel isolation devices can work with pressures from PN1.6MPa to PN6.4MPa (ANSI 150LB to 600LB) and have standard sizes from DN15 to DN400. There are different types of connections, such as RF (raised face), RJ (ring joint), FF (flat face), and LG (large groove). The flanges must fit PN16 convex surfaces or PN40/64 concave-convex shapes. Because it is so flexible, it can be easily added to current systems without having to make expensive changes.

The temperature range depends on how the seats are set up. Soft seats, which are usually made of R-PTFE or reinforced elastomers, work effectively from -20°C to +250°C and have ANSI Class VI zero-leakage ratings, which make them perfect for general industry use. Metal-seated models can handle temperatures from -60°C to +450°C and meet ANSI Class IV leaking standards. They can be used in systems that use high-temperature steam or thermal oil. Both designs meet the requirements of GB/T 12237 and ASME B16.34, which guarantee consistent sizes and structural stability during hydraulic shocks.

The clockwise movement of the valve core makes it easy to use, and the 90-degree opening lets you act quickly during emergency shutdowns. The flow features keep the ON-OFF functionality strict, which stops the unwanted throttling that wears away the seat.

Applications and Benefits of Stainless Shut Off Valves

Chemical Processing and Petrochemical Industries

Standard metal valves break down quickly in places where sulphuric acid, hydrochloric acid, or sour gas streams containing hydrogen sulphide are present. CF8M stainless shut off valves that meet NACE MR0175 standards stop sulphide stress cracking and keep fugitive emission levels in line with ISO 15848. During repair, these valves keep workers away from dangerous process fluids, which is important for refineries.

​

Because investment-cast steel bodies have a higher tensile yield strength, they don't deform when pressure spikes happen, which can happen in distillation columns and reactor circuits. Our double eccentric design lowers the working force by 30%, which lets us use smaller actuators and extends the mechanical life to more than 50,000 cycles, which saves a lot of money in facilities that run all the time.

Water Treatment and Municipal Systems

Municipal water workers and HVAC building firms need valves that don't rust or get dirty from bacteria. The smooth, low-roughness surface of electropolished stainless steel innards keeps biofilm from building up, so the flow rate stays high for decades of use. Fire protection designers choose CF8M types for saltwater fire suppression systems because they are resistant to chloride.

The material is good for urban drainage projects because it can handle both acidic and basic wastewater streams. Stainless gate valves are very useful in sludge transfer lines because they can handle floating solids without getting clogged. Cast iron valves need to be replaced more often.

Food, Beverage, and Pharmaceutical Applications

The needs of sanitary processes are higher than the needs of most industries. Tri-clamp-linked valves that have been electropolished in the cavities get rid of places where germs can hide, meeting FDA and USP Class VI standards. The Clean-in-Place (CIP) and Steam-in-Place (SIP) processes heat and cool parts many times, using harsh chemicals that would damage less durable materials.

Our CF3/CF3M low-carbon versions reduce carbide precipitation during welding, which stops intergranular corrosion in heat-affected areas. This is an important thing to think about for manufactured pipe systems. This mechanical stability makes sure that the product is pure in batch reactors for pharmaceuticals and packaging lines for drinks.

Selecting the Right Stainless Shut-Off Valve for Your Needs

Material Selection Criteria

Which grade to use (CF8 or CF8M) depends on how much chlorine is present. Coastal sites, offshore platforms, and water plants need CF8M's higher resistance to pitting. For cost-effectiveness reasons, CF8 is often chosen for inland uses that deal with neutral fluids. At ZTVK, our expert team gives PMI (Positive Material Identification) testing certificates that confirm the amount of chromium, nickel, and molybdenum in a material. This gets rid of the risk of fake stainless steel shut-off valves that could be unsafe.

Duplex stainless metals work about as well as normal austenitic grades, as well as exotic nickel alloys. Their balanced architecture gives them twice as much yield strength as 316SS. This means that they can have smaller walls and lighter weights without losing their pressure ratings. This is helpful for remote sites where weight has a direct effect on the cost of the structure.

Pressure, Temperature, and Flow Considerations

Over-specification costs can be avoided by matching the pressure class to the design conditions of the system. A city's water system that works at 10 bar only needs PN16 flanges, but the high-energy steam line at a thermal power plant needs PN40 or PN64 grades. Oversizing costs more in materials, and undersizing increases the chance of a catastrophic failure.

Cycling temperatures change the choice of seat material. When specialised plastics are used, soft chairs work great in cryogenic LNG service down to -196°C, but they stop working above 250°C. Metal seats can handle very high temperatures, but they leak more easily. This is fine for steam service, but not for isolating dangerous chemicals. Understanding these trade-offs helps you make accurate specifications.

Limits on flow speed are also important. Ball valves can handle fast-moving gas streams without wearing down, but gate valves get wire-drawing damage when they are partly open while gas is flowing through them. Our engineering help makes these operating limits clear, which stops wear and tear from happening too soon.

Installation and Maintenance Guide

Best Practices During Installation

The right way to fix something starts before the wrench hits the flange. Check that the dimensions are correct according to ASME B16.10 face-to-face measurements and that the stainless shut off valves fit between the pipe supports that are already there without putting any bending pressures on them. Use non-abrasive ways to clean all gasket surfaces; scratches weaken the seal.

When putting things together, stainless steel threads often char (cold join). Avoid using petroleum-based lubricants on threaded joints because they turn carbonised at high temperatures. Instead, use an anti-seize substance made of nickel. Tighten flange bolts in a star design to the required torque levels, which for 2-inch Class 150 flanges are usually 50 to 70 ft-lbs. Too much torque can damage seals, while too little torque can cause leaks.

Actuated valves need the actuator drive and valve stem to be carefully lined up. Misalignment leads to bushings wearing out too quickly and an operation that isn't steady. We offer detailed plans that show exactly where the ISO 5211 mounting pads are located. This makes it easier to adapt actuators without making any changes in the field.

Maintenance Intervals and Procedures

Problems are found before they break down by regularly inspecting every six months. If you see stem leaking past the packing glands, you need to make some adjustments. If you see continuous dripping, you need to repack the stem. Every three months, move the valve all the way through to keep the seats from joining together in idle service.

Soft seats need to be replaced based on how many times they've been used, not on the calendar. A valve that is cycled twenty times a day will hit its 50,000-cycle design life in seven years, but a valve that is cycled once a month will last hundreds of years. Use counters or process historians to keep track of actions.

Metal chairs can be lapped to fix the closing surfaces. Use brass wire brushes to get rid of deposits instead of steel ones, which attach metal particles that cause rust spots. Our repair guides explain in detail how to fix each type of valve, which cuts down on downtime during turnarounds.

Procurement and Brand Insights for Stainless Shut-Off Valves

Supplier Evaluation and Certification

Verifiable licenses are the first step in quality security. Systematic quality management is confirmed by ISO 9001, but smart buyers also check material test records (MTRs) that can be linked to heat numbers. According to API 598, hydrostatic testing confirms the structure's stability. Shell tests at 1.5× rated pressure find casting porosity, and seat tests at 1.1× pressure make sure there is no leaking in stainless shut-off valves.

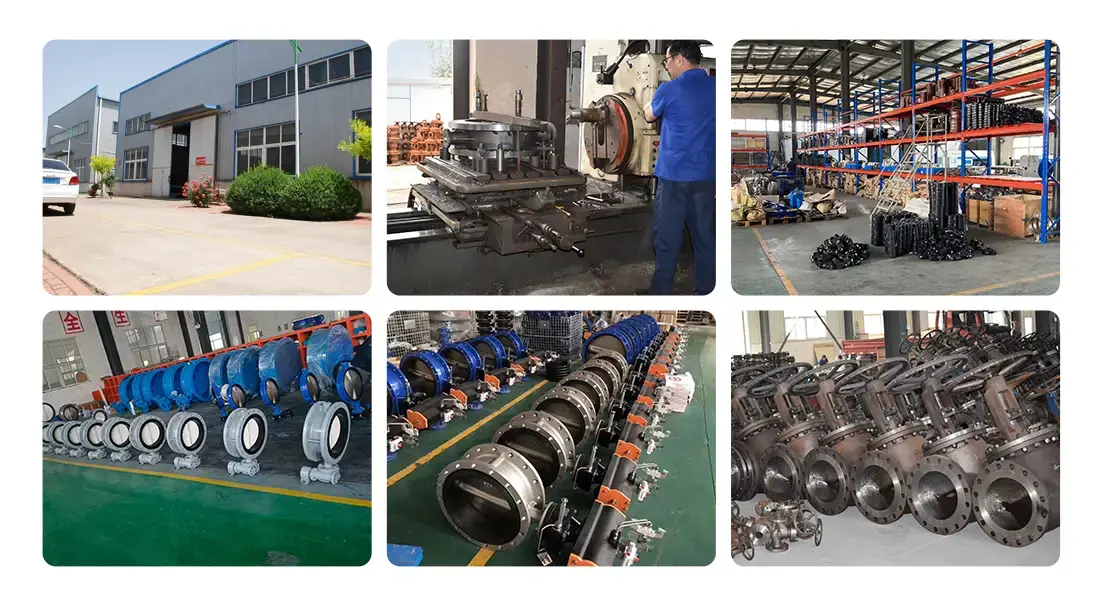

Watch out for fake certificates. Third-party testing services, such as SGS or Bureau Veritas, make sure that goods are safe for buyers by checking them independently. Our plant in Tianjin's Beichen District is open to factory checks, which shows honesty and builds long-term relationships.

Lead Times and Logistics Considerations

Standard DN50–DN600 models with standard pressure values ship in 3–7 days from our collection of over 2,000 units. It takes 15 to 25 days to make non-standard configurations, like those made of rare metals or special flanges. When there are problems in the supply chain, rush orders get priority and are delivered in 7–10 days for an extra 20% fee.

We are only 50 kilometres from Tianjin Port, which makes export operations easy. Freight rates are reasonable, and schedules are reliable thanks to long-term relationships with COSCO and Maersk. We offer FOB Tianjin Xingang or CIF destination port pricing, and our ISPM 15-compliant wooden box packing keeps customs lines moving quickly.

The needs of distributors are met by OEM and ODM skills. With private labelling, you can add your own nameplates, logos, and packaging to our goods, making them your own unique items. With ODM services, valve internals are redesigned to work in different environments. For example, larger stem covers are used in dusty Middle Eastern climates, while epoxy coats are used in humid Southeast Asian climates.

Conclusion

When choosing the right stainless shut off valves, you have to think about the budget while also looking at the material qualities, pressure ratings, and operating conditions. The CF8M bodies with metal seats can work in a wide range of temperatures, from cryogenic to superheated steam. The CF8 types with soft seats are more cost-effective for moderate-service uses. The technical specs—pressure range PN1.6-6.4MPa, standard diameter DN15-400, and compliance with GB/T 12237 and ASME B16.34—make sure that the product is safe and compatible around the world. When installed correctly using the right force and maintained based on cycle counts instead of random plans, these valves will work reliably for decades in chemical processing, city water systems, and clean food production.

FAQ

1. What differentiates CF8 from CF8M stainless steel valves?

CF8 is the same as cast 304 stainless steel, and CF8M is the same as 316 stainless steel. The main difference is the amount of molybdenum in stainless shut-off valves. CF8M has 2-3% molybdenum, which makes it more resistant to pitting rust caused by salt. Because of this, CF8M is needed for seawater service, seaside areas, and chemical processes that use halides. CF8 is good enough for freshwater systems and light chemical contact, so it saves money when better corrosion protection isn't needed.

2. Can these valves be used for flow regulation?

It is scientifically possible to use on/off valves for constant throttling, but they break down too soon. When the seat is only slightly open, high-speed fluid impingement wears away at the surfaces, ruining the sealing geometry needed for a tight shutdown. Ball and gate valves are especially prone to failure, but globe valves can handle some compression as long as they are specifically rated for that use. For situations that need to change a lot, we suggest using control valves with shaped plugs.

3. How often should maintenance be performed?

Maintenance times are based on how often the cycle happens instead of how much time has passed. Check the packing glands and run the circuit three times a year to make sure the valves work every day. Valves that are in backup service only need to be inspected once a year. If the soft chairs leak more than the ANSI Class VI standards, or after 50,000 rounds, they should be replaced. If you take good care of metal seats, they might last as long as the building does if you only lubricate them when there is obvious damage or leaking.

4. What does "Fire Safe" certification mean?

In API 607 Fire Safe testing, valves are exposed to flames at 750°C for 30 minutes while pressure is kept up. The main soft seats fail this test, but the backup metal seats immediately go into action, keeping leakage to the level that is allowed in an emergency. This feature stops huge releases during building fires, so oil pipelines and gas processing plants that use hydrocarbons, which offer life-threatening risks, must have it.

Why ZTVK Is Your Trusted Stainless Shut-Off Valve Manufacturer

ZTVK has been making precise flow control solutions in Tianjin for more than 15 years. They have advanced CNC machining machines, full testing labs, and ISO 9001, 14001, and OHSAS 18001 certifications. As a dependable stainless shut off valve provider, we keep more than 2,000 standard units ready to ship right away. This helps dealers and EPC contractors meet the tight project deadlines they face. Our 18-month guarantee protects your investment, and our double eccentric valve design lowers the cost of the actuator. Our engineering team answers quickly at ktec86961886@163.com, whether you need OEM branding, custom seat materials, or technical help for tough uses.
