Industry standards for metal-to-metal seated butterfly valves

Metal-to-metal seated butterfly valves represent precision-engineered flow control solutions designed to withstand extreme industrial conditions where elastomeric seats fail. Unlike conventional soft-seated designs, these valves employ hardened metal sealing surfaces—typically featuring triple-offset geometry and overlay materials like Stellite or tungsten carbide—achieving bubble-tight shutoff per API 598 and FCI 70-2 Class VI standards. Compliance with recognized industry standards including API 609, ISO 5211, ASME B16.34, and EN 593 ensures these valves deliver reliable performance in high-temperature, high-pressure, and corrosive environments. Understanding these standards helps procurement professionals make informed decisions, mitigating operational risks while securing valves that meet rigorous industrial requirements and support long-term system integrity.

​

Understanding Metal-to-Metal Seated Butterfly Valve Standards

Global Standards Framework

There is a web of international standards that govern design, materials, testing, and performance verification for Metal-to-Metal Seated Butterfly Valves. API 609 Category B sets minimum requirements for body wall thickness and mechanical strength for butterfly valves in critical service. It also specifies pressure-temperature values and measurement requirements. ISO 5211 standardises actuator mounting interfaces, which makes sure that products from different makers can work together. It also lets you switch control systems without having to replace valve bodies, which is very helpful for OEM clients and system developers.

ASME B16.34 gives pressure-temperature ratings for valve bodies and bonnets, which affects the choice of material and the estimate of wall thickness. The European standard EN 593 talks about similar issues, though the testing methods are a little different. These frameworks don't replace each other; instead, they work together, and trustworthy manufacturers make valves that meet more than one standard at the same time. Our factory keeps up-to-date certifications in ISO, API, and CE frameworks. This lets us serve a wide range of international markets with reliable quality.

​

Material Specifications and Compliance

The guidelines are very specific about the types of materials because they know that success depends on the metallurgical qualities of those materials. Though more expensive, ASTM A351 CF8M (stainless steel 316) valve bodies are more resistant to acidic media than ductile iron. Duplex stainless steel grades like 2205 and 2507 are highly strong and don't rust, making them excellent for maritime and offshore usage that fulfil NACE MR0175 criteria for sour gas service.

Discs require the same strictness. Our nickel-lined ductile iron discs are cheap, strong, and rust-free like DI. Duplex or full stainless steel discs are excellent for severe conditions. The seating surface seals well with flexible graphite and toughened metal. This approach maintains the bubble-tight stop while permitting thermal expansion and tiny particles that would harm metal contacts.

Seat hardfacing materials are also regulated. Stellite 6 layers are 35–45 HRC hard, thus particle-laden fluids don't wear them away. With HVOF (High-Velocity Oxygen Fuel) processes, tungsten carbide coatings can attain 60+ HRC, which makes them persist longer in the hardest environments. During our quality control procedures, Positive Material Identification testing employing XRF analysis confirms these standards. This ensures that every valve meets written specifications before shipment.

Testing and Certification Requirements

Compliance verification shows which manufacturers are reliable and which sell non-conformists. API 598 shell hydrostatic testing confirms body stability at 1.5 times rated pressure. This exhibits casting faults and thin walls. Metal-to-Metal Seated Butterfly Valves need nitrogen or helium leakage testing under gas pressure to discover microscopic leakage routes across the sealing interface. Hydrostatic testing isn't enough.

We perform these tests on every valve at our facilities and preserve complete records that can be connected to each valve's serial number. EPC businesses managing large infrastructure projects value third-party witnessing by classification bodies like DNV or Lloyd's Register. Petroleum service requires valves to retain their shutdown integrity after flame exposure, which API 607 or ISO 10497 testing shows.

Test cycles confirm useful life. Standards define minimum cycle numbers between 5,000 and 10,000. Our valves can withstand over 50,000 field cycles due to their double-eccentric design and precise machining. Coordinate measurement equipment verifies the "cam effect"'s three offset angles. This effect avoids friction that wears down other designs by closing contact only at the final close.

Comparing Metal-to-Metal Seated Butterfly Valves with Other Valve Types

Performance Against Soft-Seated Designs

Temperature and wear resistance are the key differences. Above 200°C, EPDM, Viton, and PTFE seats degrade. Our Metal-to-Metal Seated Butterfly Valves perform reliably up to 540°C and 815°C in some designs. Your city's water system may not need this upgrade if it employs EPDM seats. District heating networks, steam condensate return pipes, and thermal fluid circuits need metal seats to prevent catastrophic seal failure.

Harsh media quickly degrade soft seats. Slurry service kills elastomers in months in mining, pulp processing, and grit wastewater. Hard-faced metal seats can withstand years of use. Durability lowers lifecycle expenses despite a greater initial price. Some soft-seated valves needed annual replacement, costing $800 per valve plus $2,500 for labour and delay. Metal-to-Metal Seated Butterfly Valves can last seven years without maintenance, making them a good investment for certain applications.

Pressure resistance varies greatly. Soft-seated butterfly valves usually handle PN25 or 300 LB. Metal-to-Metal Seated Butterfly Valves can handle PN40, PN63, and greater classes due to their strong body design and interference-fit sealing, which strengthens under pressure unlike elastomers.

Advantages Over Gate and Ball Valves

Ball valves are great for shutting off flow and closing in both directions, but they are more expensive and heavier, especially when they are big. A 600mm Metal-to-Metal Seated Butterfly Valve weighs about 180 kg, while a similar ball valve weighs 420 kg. This is an important difference to keep in mind when loading structures and installing valves. Multi-turn gate valves need more torque than quarter-turn actuators, so quarter-turn actuators are smaller and use less energy.

Gate valves work great when there isn't much pressure drop, but they have trouble with slow service because of wear and tear from shaking and erosion. Metal-to-Metal Seated Butterfly Valves are good at both isolating and modulating control, as long as the disc geometry and seating design are right for the job. When compared to concentric designs, our double-eccentric structure cuts opening force by 30%. This lets automatic systems use smaller actuators and respond faster.

Because ISO 5211 sets a standard mounting interface, you can switch from manual worm gears to electric or pneumatic action without having to replace the valve body. This is a level of freedom that gate and ball valves don't usually offer. When updating old systems or responding to changing operational needs, this ability to adapt is very useful.

​

Procurement Considerations Aligned with Industry Standards

Supplier Verification and Documentation

Certification review is the first step in figuring out how trustworthy a supplier is. The ISO 9001 quality management certification shows that a process is being controlled in a planned way. The ISO 14001 and OHSAS 18001 certifications show that a company cares about the environment and safety, which are becoming more and more important in corporate purchasing policies. We keep all three certifications up to date with annual audits by a third party, and you can look at our paperwork before making a purchase commitment.

Every order should come with a material test record from a recognised lab. These papers confirm the body and disc materials' chemistry make-up, tensile strength, and impact resistance. Certificates of Conformity that say they meet certain standards (API 609, EN 593, etc.) must use test data instead of general claims. Our quality assurance team gives you full traceability documentation, such as heat numbers, test results, and inspection records. This helps you meet your own quality standards and reassures your customers.

Be wary of sellers who offer prices that seem too low without any proof. There are a lot of fake certificates and fake products in the industrial Metal-to-Metal Seated Butterfly Valve market. We've seen rivals using cast iron bodies that were labelled as "ductile iron" or discs that weren't hard-faced properly, which causes them to fail early and cause safety issues. These risks can be avoided by asking for PMI testing results and being present during plant inspections.

Interpreting Technical Specifications

Pressure numbers must be interpreted carefully. PN16 means 16 bar maximum pressure and a temperature-pressure relationship in which pressure lowers as temperature rises. Because material strength reduces at 200°C, a valve that can withstand PN16 at 20°C may only manage PN10. Make sure that the pressure-temperature curve the maker gives you meets your operating conditions, such as rapid temperature and pressure variations.

Our products handle PN6, PN10, PN16, and 150LB pressures in sizes DN50 to DN3000. Ductile iron (GGG40/50), carbon steel (WCB A216), stainless steel (304/316/304L/316L), and duplex stainless (2507/1.4529) are body materials. Nickel-lined DI, WCB, stainless, and duplex 2205/2507 discs match body elements. The seat's metal surfaces and flexible graphite allow bubble-tight cutoff while meeting Metal-to-Metal Seated Butterfly Valves' temperature requirements.

Which actuator—worm gear, electric, or pneumatic—you choose influences installation cost and operation. Manual worm gears can be employed on isolation valves that are rarely used, while electric motors provide remote control and SCADA integration. Pneumatic actuation is fastest for emergency shutoffs but complicates air supply.

Lead Times and Customization Capabilities

Standard versions in popular sizes (DN50–DN600) arrive in 3–7 days from our over 2,000 units. This meets valve wholesalers' speedy delivery needs for just-in-time supply chains. Non-standard designs with specialised materials, flanges, or actuation interfaces can take 15–25 days longer. It depends on the arrangement's complexity. We have customised production lines for Metal-to-Metal Seated Butterfly Valves and charge 20% more for rush orders of 7–10 days.

OEM and ODM services distinguish manufacturers who can collaborate from product sellers. Custom brand labelling, port layouts, special coatings (such as epoxy glue for humidity resistance and thicker stem coverings for dusty situations), and engineering support for unique usage are available. Drawing-based manufacturing enables you to identify valve model replacement parts, so you can use old systems without buying pricey new ones.

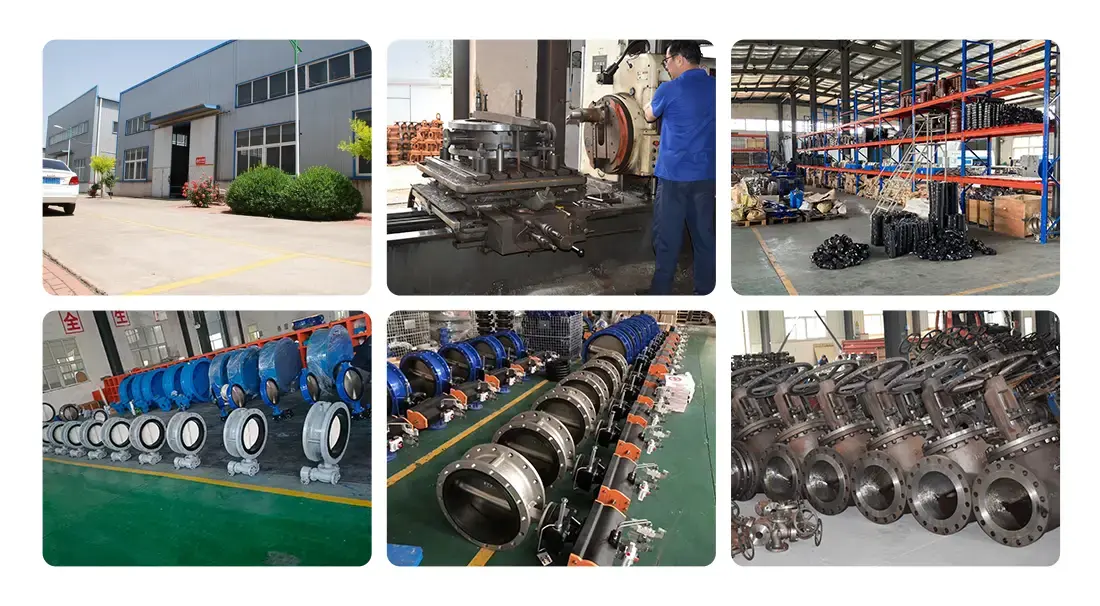

Our Beichen District factory is 50 km from Tianjin Port, making container loading straightforward. We have low FOB and CIF rates. Booking and transportation timeframes are reliable due to our longstanding relationships with COSCO and Maersk. To protect valuables during international transportation, our ISPM 15 packaging includes timber boxes, moisture barriers, and inner bracing. These extra processes reduce customs delays and arrival damage claims.

Maintenance and Operational Best Practices Following Industry Guidelines

Inspection and Preventive Maintenance

To start standards-based maintenance, you need to know how things break. Metal-to-Metal Seated Butterfly Valves usually fail because the seat gets scored by debris hitting it, the stem corrodes in harsh environments, or the actuator wears out from frequent cycling. Visual inspections every three months look for stem packing leaks, actuator irregularities, or external corrosion. This keeps small problems from getting worse.

An annual pressure test makes sure that the integrity of the seal hasn't been compromised. Portable gas test equipment lets testing happen while valves are still in use, without taking them out of the pipes. This is a big benefit over gate valves, which need to be taken apart for seat checking. When we send valves, we include thorough inspection instructions that include acceptable leakage limits and torque specs for actuator verification.

Surface penetrant testing on seating surfaces during major maintenance periods finds small cracks in hardfacing that happen before the seal fails. This non-destructive checking of each valve takes less than an hour and finds problems months before they become big problems. Our technical support team helps customers do these inspections themselves by giving them video instructions. This way, customers don't have to rely on outside service contractors as much.

Common Issues and Resolution

Working force frequently increases when anything is caught between the disc and seat or the stem is rusted. Opening and shutting the valve many times clears minor blockages. After power increases, the system must be disassembled and inspected. To restore sealing surfaces, metal-to-metal butterfly valves should only be cleaned and lightly lapped, while soft-seated types need a new seat.

Stem packing leaks can be repaired before replacement. Low-friction graphite packing reduces stem wear and is flexible up to 540°C. The machine runs smoothly, and leaks are invisible when the packing is perfect. Tightening prematurely increases torque and wear. Our assembly instructions provide torque values for packing gland nuts for Metal-to-Metal Seated Butterfly Valves, so no guessing is required.

Outdoor corrosion prevention depends on the environment. Standard epoxy finishes work for most jobs, but marine environments require special coatings or stronger stainless steel body materials. We built thicker stem protectors for Middle Eastern areas where wind-blown sand accelerates damage. This shows how local design adjustments boost regional performance over time.

Storage and Handling Protocols

Proper storage greatly increases the shelf life. Metal-to-Metal Seated Butterfly Valves should be kept in their original packaging until they are installed, and if possible, they should be kept indoors in climate-controlled areas. For keeping outside, an extra waterproof covering keeps water out of the motors and stops corrosion on the machined surfaces. We put protective coatings on all machined surfaces that will be seen. These shouldn't be touched until right before installation.

To handle big valves, you need the right pulling gear. When you use the wrong lifting methods and damage actuators, you cancel the warranty and put workplace safety at risk. Our packaging has weight marks and lines for lifting points. For Metal-to-Metal Seated Butterfly Valves DN800 and up, there are built-in lifting lugs that are made to meet industry load factors. When workers install a lot of valves every day, these details matter—clear instructions cut down on mistakes and problems during startup.

Conclusion

Choose Metal-to-Metal Seated Butterfly Valves that exceed industry requirements to prevent costly breakdowns, safety incidents, and unscheduled maintenance. When purchasing managers understand how API, ISO, ASME, and EN standards translate into material requirements, testing procedures, and performance characteristics, they can objectively evaluate suppliers and choose valves that meet application needs. Standards-compliant valves last longer, cost less to maintain, and operate reliably in demanding environments than soft-seated counterparts.

We've been creating valves in Tianjin's industrial zone for 15 years, have all the licenses, and employ modern production processes to match this guide's high criteria. With a wide choice of sizes, pressure ratings (PN6 to PN16 and 150LB class), materials, and customisation possibilities, we can fulfil the needs of many industries while maintaining quality through ISO-certified processes. Clear paperwork, timely shipping from a huge inventory, and proximity to Tianjin Port determine supplier relationships in competitive B2B environments.

FAQ

1. What key standards should I verify when sourcing metal-to-metal seated butterfly valves?

Check that the product meets API 609 Category B requirements for critical service applications and make sure the maker gives you real test reports instead of just making claims. The ISO 5211 approval makes sure that all kinds of actuators can be mounted together, which protects your options for future upgrades. Pressure-temperature ratings that are in line with ASME B16.34 are valid, and for hydrocarbon service, fire-safe certification to API 607 or ISO 10497 is required. Ask for material test reports that follow ASTM guidelines and leakage testing certificates from a third party that show Class VI shutoff performance for Metal-to-Metal Seated Butterfly Valves.

2. How do industry standards affect valve maintenance requirements?

Standards set baseline check times and testing methods that make the most of the service life. API-compliant valves come with thorough care instructions that list torque values, how to adjust the packing, and the lowest level of leakage that is allowed. By following these standard guidelines, you can avoid both not doing enough maintenance (which can cause problems) and doing too much maintenance (which wastes resources). For our 18-month warranty to be valid, you must follow the written maintenance instructions for Metal-to-Metal Seated Butterfly Valves. To make sure you do this, we give you full manuals with installation instruction videos.

3. Can customized valves maintain full standards compliance?

Yes, customisation meets the needs of a specific application while still meeting basic standards. Our OEM and ODM services change the outside features (like branding, coatings, and connection types) without changing the inside sizes, materials, or testing procedures that make sure they meet standards for Metal-to-Metal Seated Butterfly Valves. All custom valves go through the same pressure tests, leakage checks, and material certifications as standard valves. We keep design paperwork that shows continued conformance even after changes, which meets the audit standards of buying teams that care about quality.

Partner with ZTVK for Standards-Compliant Metal Seated Butterfly Valve Solutions

Even seasoned procurement experts struggle to navigate international standards while ensuring reliable delivery, affordable rates, and quality assurance. ZTVK's ISO9001, ISO14001, and OHSAS18001 certifications, modern factories with CNC precise cutting, and thorough testing methods that examine each Metal-to-Metal Seated Butterfly Valves before shipping eliminate these concerns. Our equipment can withstand PN6–PN16 pressures and 150LB class in sizes DN50–DN3000. For different applications, the bodies can be composed of ductile iron, carbon steel, or stainless steel.

From equipment selection to installation, our engineering team can assist you. They may send conventional models from our over 2,000 units in 3–7 days or design custom OEM solutions with your branding and specific materials. For 15 years, multinational distributors and industrial contractors have trusted us. We understand your buying issues: uneven quality, long lead times, and limited customisation. We started our firm to solve these issues.

Contact our engineering staff at ktec86961886@163.com for valve recommendations, CAD models, material certifications, and test results. We provide free qualifying samples to assist you in evaluating suppliers and create trust before placing a large order.

References

1. American Petroleum Institute. API Standard 609: Butterfly Valves - Double-flanged, Lug- and Wafer-type, and Butt-welding Ends. Washington, DC: API Publishing Services, 2022.

2. International Organization for Standardization. ISO 5211:2024 Industrial Valves - Part-turn Actuation Attachments. Geneva: ISO Central Secretariat, 2024.

3. American Society of Mechanical Engineers. ASME B16.34-2020: Valves - Flanged, Threaded, and Welding End. New York: ASME Standards, 2020.

4. Fluid Controls Institute. FCI 70-2 Standard: Control Valve Seat Leakage. Cleveland, OH: Fluid Controls Institute, 2019.

5. European Committee for Standardization. EN 593:2009+A1:2011 Industrial Valves - Metallic Butterfly Valves for General Purposes. Brussels: CEN Management Centre, 2011.

6. American Petroleum Institute. API Standard 607: Fire Test for Quarter-turn Valves and Valves Equipped with Non-metallic Seats. Washington, DC: API Publishing Services, 2021.
