Double Acting Butterfly Valve – Reliable Pneumatic Flow Control Solutions

When your water treatment facility needs consistent, fail-safe flow regulation or your chemical processing plant demands precise control under viscous conditions, a double acting butterfly valve delivers unmatched pneumatic performance. Unlike spring-return actuators that gradually lose torque during operation, double-acting systems maintain constant force across the entire stroke, preventing valve seizure in high-demand applications. This pneumatic configuration uses compressed air to both open and close the valve, ensuring reliable quarter-turn operation in environments where manual intervention is impractical and system integrity is paramount.

​

Understanding Double Acting Butterfly Valves

What Makes Double Acting Actuation Different

A pneumatic butterfly valve equipped with double-acting actuation operates through a distinct mechanism. The actuator receives compressed air—typically between 2.5 and 8 bar—into two separate chambers. Port A drives the piston to rotate the valve disc open, while Port B forces closure. This bidirectional pneumatic force eliminates the need for return springs, addressing a critical limitation in spring-return designs where decompression reduces available torque.

The valve body houses a disc that rotates 90 degrees within the flow path. When aligned with the pipeline, flow is unrestricted. Rotated perpendicular, the disc creates a tight seal against an elastomeric or PTFE seat. The rack-and-pinion or scotch yoke actuator converts linear piston motion into rotational movement, completing the stroke in under three seconds for most DN700-DN2000 configurations.

Core Technical Specifications and Material Advantages

Materials that can stand up to acidic media and pressure spikes are needed in modern industrial setups. The bodies of ZTVK's double-acting butterfly valves are made of ductile iron (GGG50 for water systems), WCB carbon steel (A216 grade), and stainless steel grades CF8, CF8M, CF3, and CF3M. Nickel-lined ductile iron and duplex stainless steel (2205/2507) are both choices for discs. These materials are better at resisting rust than normal cast-iron discs used in chemical processes.

Seat materials increase the number of ways they can be used. EPDM seals are used for most water uses, while NBR seals are used for fluids that are made from oil. PTFE chairs can handle temperatures up to 200°C and don't react with harsh chemicals, so they can be used in food and drug processes. VITON is very good at mixing with acids and solutions of all kinds.

ISO5211 is a connection standard for fitting actuators, and flange ratings for European systems are PN10/PN16, while values for North American systems are 125LB/150LB. The Asian market is served by JIS10K support. Working pressure levels of PN10 and PN16 can be used with city water networks and HVAC cooling loops without the need for parts that are too big.

Industry Needs Continuous Torque

Large-bore distribution lines (DN700–DN2000) are used in wastewater treatment plants, and water hammer is a risk to the infrastructure. The double-acting system lets you control the speed at which the valve closes by adjusting the flow of exhaust. This keeps the pressure from rising too high and bursting the pipes. The fail-safe setting keeps things in the same state even if the air supply goes out. This stops rapid changes in flow that could swamp treatment steps further down the line.

Chemical processing plants that work with thick fluids or slurries can benefit from an actuator force that stays constant. Particulate matter can sometimes make it hard for the seat to seal, which needs an extra close force that spring-return motors can't always provide. Between production runs, batch processing skids need to be able to hold their place firmly. Double-action systems can do this without using a lot of air all the time.

Cooled water flows to heat exchangers with the help of industrial HVAC systems in factories and data centers. The fail-safe feature keeps the flow of cool air going even when the control signal is interrupted. This is different from fail-closed valves, which stop flow all of a sudden and risk warming the equipment. When modulating control is used with electro-pneumatic positioners, the piston is pushed by adjusted pneumatic forces that keep the temperature within ±1°C.

Double Acting vs. Single Acting Butterfly Valves and Other Valve Types

Operational Mechanism Comparison

Single-acting actuators incorporate return springs that automatically drive the valve to a predetermined position—typically closed—upon air supply failure. This fail-safe design suits emergency shutdown scenarios but introduces mechanical limitations. Spring compression during the opening stroke means maximum torque availability occurs only at the start of travel. As the valve approaches full open, diminished spring force reduces closing capability, potentially causing incomplete shutoff with high-differential-pressure applications.

Double-acting configurations eliminate this torque variability. Pneumatic pressure generates a consistent force throughout the 90-degree rotation, ensuring reliable operation regardless of valve position. The tradeoff involves fail-last behavior rather than automatic safety positioning. Process engineers specify double-acting systems where maintaining the current flow state during power outages prevents greater operational disruption than immediate shutdown.

Electric actuators offer precise positioning and remote monitoring capabilities in double acting butterfly valves but carry higher initial costs and maintenance complexity. Motor-driven mechanisms contain more moving parts prone to wear, while pneumatic systems benefit from simpler construction and inherent explosion-proof operation in hazardous environments. Cycle life for pneumatic double-acting valves often exceeds one million operations, compared to 100,000-500,000 cycles for electric counterparts in equivalent duty.

Material and Sealing Selection for Specific Media

Corrosive fluid handling demands careful material pairing. Sulfuric acid service requires CF8M stainless steel bodies with PTFE seats, as elastomers degrade rapidly in acidic environments. Duplex stainless steel (2205/2507) discs provide enhanced pitting resistance in chloride-rich water, extending service life beyond standard 316 stainless by preventing crevice corrosion around the shaft bore.

Temperature extremes influence seat selection. EPDM performs well from -40°C to 120°C in water and steam applications, while VITON maintains sealing integrity up to 200°C in hydrocarbon service. Metal-seated configurations handle temperatures exceeding 400°C in power generation but sacrifice tight shutoff, exhibiting slight leakage acceptable for isolation rather than control duty.

Slurry applications in mining and pulp processing benefit from resilient seats that accommodate particulate interference. NBR seats with increased hardness (70-80 Shore A) resist abrasion while maintaining sufficient compliance to seal around trapped solids. Lug-style body designs allow inline maintenance without depressurizing adjacent piping, reducing downtime during seat replacement.

Procuring Double Acting Butterfly Valves – What You Need to Know

Evaluating Supplier Reliability and Quality Standards

Global valve distributors prioritize suppliers demonstrating consistent quality control and international standards compliance. ISO 9001 certification indicates systematic manufacturing processes, while API 598 and EN 12266-1 testing protocols verify shell integrity and seat leakage performance. Reputable manufacturers conduct hydrostatic shell tests at 1.5 times rated pressure and seat tests at 1.1 times, ensuring bubble-tight shutoff under specified conditions.

​

Positive Material Identification (PMI) becomes crucial when specifying stainless steel bodies. Field audits occasionally reveal CF8 material supplied as CF8M, compromising corrosion resistance in chloride environments. Certified suppliers provide PMI reports confirming alloy composition, with CF8M validating as 316 stainless containing molybdenum for enhanced pitting resistance.

Actuator torque verification protects against undersized actuation. The actuator output torque should exceed the valve's maximum operating torque by 25-30%, accounting for seal friction increases over time and media viscosity variations. Manufacturers provide torque charts correlating air supply pressure to available output, enabling engineers to confirm adequate safety margins across the operating envelope.

Lead Times, Customization, and Inventory Considerations

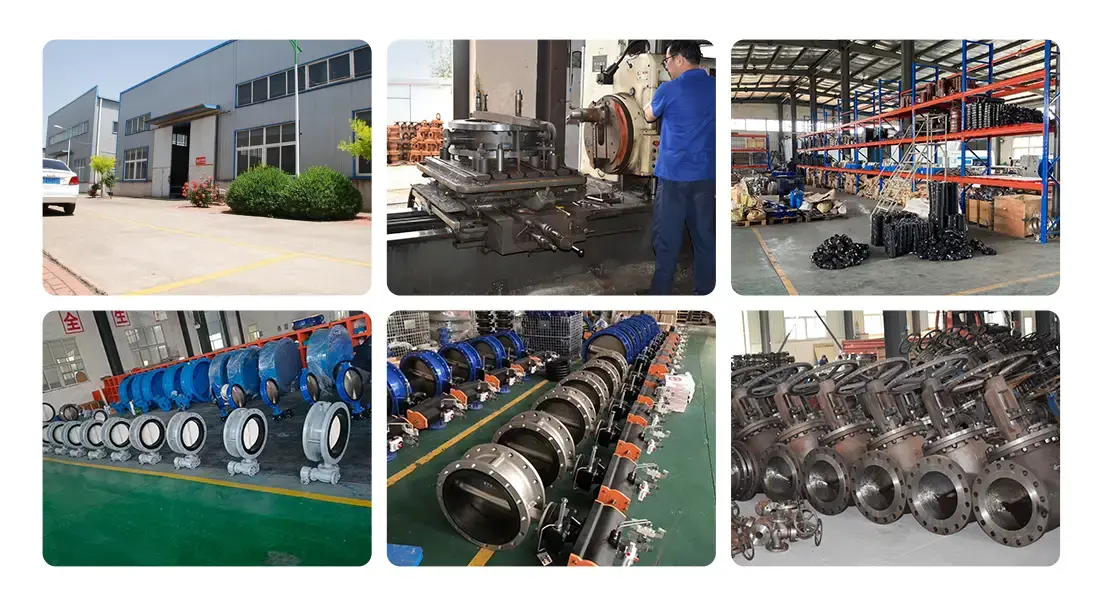

Standard DN700-DN2000 configurations from established suppliers typically ship within three to seven days when sourced from existing inventory. ZTVK maintains over 2,000 standard butterfly valves in Tianjin warehouse facilities, supporting rapid fulfillment for distributors serving regional markets. Non-standard specifications—alternate flange drilling, exotic materials, or modified trim—extend production cycles to 15-25 days, depending on complexity.

OEM branding options address trading company requirements for private labeling. Custom nameplates, logo engraving, and branded packaging differentiate product offerings in competitive markets. ODM services extend to valve body redesign, modifying connection types from wafer to lug configuration, or adjusting shaft dimensions for specific actuator interfaces. Engineering consultations during the specification phase prevent costly rework and ensure compatibility with existing piping systems.

Proximity to major shipping ports influences total landed costs and delivery predictability. Tianjin-based manufacturing provides 50-kilometer access to Xingang Port, enabling efficient container loading and established partnerships with COSCO Shipping and Maersk lines. FOB Tianjin Xingang and CIF destination port quotations incorporate professional packaging—wooden crates with moisture-proof film and fixed brackets—conforming to ISPM 15 international standards to avoid customs detention.

Maintenance Tips and Longevity Optimization for Double Acting Butterfly Valves

Routine Inspection and Lubrication Protocols

Quarterly visual inspections identify early wear indicators before they escalate into system failures. External actuator checks focus on air line connections, verifying no leaks at fittings through soap solution testing. Internal actuator seals—particularly O-rings separating chambers A and B—require monitoring for air bypass, which reduces efficiency and extends stroke times.

Lubrication requirements vary by actuator design. Rack-and-pinion mechanisms benefit from synthetic grease application every six months on gear teeth and shaft bearings, preventing metal-on-metal friction that accelerates wear. Scotch yoke actuators utilize sealed bearings requiring less frequent service, though annual inspection confirms lubricant retention. Valve stem packing glands need adjustment or replacement when visible leakage occurs, tightening gradually to prevent excessive friction that increases operating torque.

Pneumatic cycle testing during maintenance intervals in double acting butterfly valve validates consistent performance. Operating the valve through 50 complete cycles while monitoring stroke time and air consumption reveals developing issues such as increased seal friction or piston binding. Establishing baseline metrics during commissioning provides comparison data, with deviations exceeding 10% prompting detailed inspection.

Preventative Strategies for Environmental Challenges

Corrosion mitigation extends equipment lifespan in harsh environments. Epoxy resin coatings applied to external body surfaces protect against atmospheric moisture in coastal installations, particularly relevant for Southeast Asian climates where humidity exceeds 80% year-round. Middle Eastern deployments benefit from thickened valve stem protective covers, preventing sand infiltration into packing areas, reducing abrasive wear that accelerates leakage.

Pressure surge protection preserves valve seats and actuator components. Installing surge anticipation valves or accumulators in systems prone to water hammer dampens transient pressure spikes that can dislodge seats or damage actuator pistons. Controlled closing speeds—achieved through adjustable exhaust flow restrictors on the actuator—limit pressure rise rates during shutoff, extending component service life by preventing repetitive stress cycling.

Genuine replacement parts sourced from certified suppliers ensure dimensional accuracy and material compliance. Aftermarket seats occasionally exhibit incorrect durometer ratings, resulting in premature compression set and leakage. Authorized service partners provide 18-month warranties covering non-human-caused failures, supporting operational continuity through stocked spare actuators, seal kits, and trim components.

Why Choose Double Acting Butterfly Valves – Value and Future Potential

Quantifiable Performance Benefits and Cost Efficiency

Operational data from municipal water systems demonstrates measurable reliability advantages. A 2019 study by the Water Research Foundation tracking 500 butterfly valves across 12 treatment plants found double-acting pneumatic configurations achieved 99.4% uptime over five years, compared to 96.8% for spring-return equivalents. Reduced unplanned maintenance directly lowers the total cost of ownership, with pneumatic systems requiring 30% fewer service interventions than electric actuators in equivalent duty.

Precise flow modulation in a double acting butterfly valve improves process efficiency. Chemical dosing systems utilizing double-acting valves with electro-pneumatic positioners maintain setpoint accuracy within ±2% of commanded position, minimizing raw material waste. Energy savings in HVAC applications stem from improved temperature control, with tighter regulation reducing compressor cycling and associated power consumption by an estimated 8-12% annually in large commercial installations.

Compact footprint advantages facilitate retrofits in space-constrained locations. Eliminating bulky spring cartridges reduces actuator length by 40% compared to single-acting designs, allowing installation in tight pipe headers without adjacent equipment interference. This dimensional benefit proves particularly valuable in offshore platforms and shipboard applications where every cubic meter commands premium value.

Emerging Technologies and Strategic Considerations

Smart valve technologies integrate digital communication protocols into pneumatic actuation. Foundation Fieldbus and Profibus interfaces enable remote diagnostics, providing real-time feedback on valve position, actuator health, and cycle counts. Predictive maintenance algorithms analyze performance trends, scheduling service interventions before failures occur, and preventing unplanned downtime.

Advanced material development enhances chemical compatibility and temperature ranges. Perfluoroalkoxy (PFA) seat linings extend PTFE capabilities into more aggressive chemical service, while ceramic disc coatings resist erosive slurries without the weight penalties of exotic metal alloys. These innovations expand application boundaries, positioning pneumatic butterfly valves as viable alternatives to more expensive ball or gate valve technologies.

Procurement professionals evaluating long-term partnerships should prioritize suppliers demonstrating engineering responsiveness and customization capabilities. The ability to modify valve body structures, adjust sealing arrangements, and provide application-specific technical support differentiates strategic suppliers from commodity vendors. Establishing relationships with manufacturers offering comprehensive after-sales service—including installation guidance videos, troubleshooting manuals, and local technical partners—mitigates integration risks and accelerates project timelines.

Conclusion

Double-acting butterfly valves represent a mature yet evolving technology addressing critical industrial flow control requirements. Their sustained torque delivery, fail-last operational mode, and compact design solve specific challenges that spring-return and electric actuators cannot efficiently address. Material versatility spanning carbon steel to duplex stainless accommodates diverse media, while seat options from EPDM to VITON extend temperature and chemical compatibility. Rigorous quality control protocols—shell testing, seat leakage verification, and PMI—ensure reliable performance in demanding B2B applications. Strategic supplier selection emphasizing certification, customization capabilities, and logistics efficiency maximizes procurement value while minimizing supply chain risks.

FAQ

1. What air pressure is required to operate a double-acting pneumatic butterfly valve?

Most industrial double-acting pneumatic actuators operate effectively within 2.5 to 8 bar supply pressure, with some designs rated up to 10 bar maximum. The specific pressure requirement depends on valve size, differential pressure across the disc, and desired actuation speed. Larger DN2000 valves handling high-viscosity fluids may require higher supply pressures to generate sufficient torque, while smaller DN700 units in low-pressure water service function reliably at 4 bar. Consult the manufacturer's torque charts correlating air supply to output force for your specific application conditions.

2. How does fail-last behavior differ from fail-safe, and when is it preferable?

Fail-safe spring-return actuators automatically move to a predetermined position (usually closed) upon air supply loss, providing emergency shutdown protection. Fail-safe double-acting systems maintain their current position when air pressure drops, preserving flow state during power interruptions. This behavior suits processes where abrupt shutoff causes greater harm than temporary loss of control—cooling water systems where sudden closure risks equipment overheating, or batch processes where maintaining material balance during outages prevents product loss. Engineers select the actuation type based on failure mode analysis for each application.
