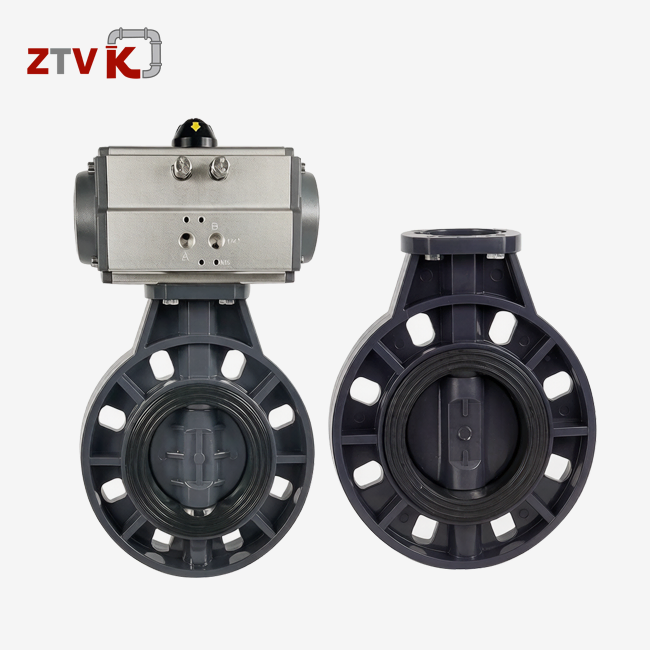

Pneumatic ventilation butterfly valve

Pneumatic Ventilation Butterfly Valve - Professional Flow Control Solution

ZTVK's enterprise-grade butterfly valves provide extraordinary execution with one-piece design and angled seal innovation. Our pneumatic ventilation butterfly valve diminishes opening torque by 30% whereas amplifying benefit life to over 50,000 cycles. With ostensible breadths from DN50 to DN2200mm and working weights up to 0.6MPa, these valves give exact stream control for ventilation frameworks over petrochemical, control era, and mechanical applications.

Why Choose ZTVK Pneumatic Ventilation Butterfly Valves?

Advanced Engineering Design

Our butterfly valves include imaginative twofold offbeat and diagonal seal innovation. This plan essentially decreases operational torque whereas maximizing solidness. You get smoother operation with less vitality consumption.

The vigorous development underpins different materials counting carbon steel, stainless steel 304/316, and duplex steel. This flexibility guarantees ideal erosion resistance for your particular application environment.

Superior Performance Specifications

Multiple Operating Modes

You can choose from three operating configurations:

• Double-acting: Provides precise control in both directions
• Normally-closed single-acting: Automatically closes when air pressure is lost
• Normally-open single-acting: Remains open during power failures

This flexibility ensures your pneumatic ventilation butterfly valve meets specific safety requirements for your ventilation system.

Key Features and Benefits

Intelligent Expansion Capability

Our valves come with saved interfacing for electric and pneumatic actuators. You can overhaul to mechanized control frameworks without supplanting the whole valve body. This future-proofs your investment.

Localized Engineering Solutions

We get it distinctive natural challenges. Our thickened valve stem defensive cover works superbly in high-dust Center Eastern conditions. The epoxy tar coating anticipates rust in sticky Southeast Asian climates.

Cut-off and Regulation Functions

Your valve serves multiple purposes:

1. Medium Cut-off: Effectively opens and closes fluid passages in pipelines
2. Flow Regulation: Controls flow rate, pressure, temperature, and liquid levels
3. Automated Control: Reduces manual intervention through pneumatic actuators

Working Principle

The valve operates using compressed air as the power source. The pneumatic actuator drives the valve stem rotation, causing the butterfly disc to rotate 0° to 90°. This enables rapid opening/closing or precise flow adjustment in your ventilation system.

Single-acting actuators include spring reset functionality. When air supply is lost, the valve automatically returns to its safe position. Double-acting actuators maintain their last position during air supply interruption.

Quality Assurance and Certifications

ZTVK maintains ISO9001, ISO14001, and OHSAS18001 certifications. Our manufacturing facility in Tianjin features modern CNC processing centers and comprehensive testing equipment.

We comply with multiple international standards:

• American Standards (API, ANSI)
• Japanese Standards (JIS)
• British Standards (BS)
• German Standards (DIN)

Fast Delivery and Professional Service

Stock Availability

Standard models (DN50-DN600) ship within 3-7 days from our 2000+ unit inventory. Custom configurations require 15-25 days production time, with rush orders available.

Global Shipping Excellence

Located just 50km from Tianjin Port, we ensure efficient sea freight coordination. Our professional packaging meets ISPM 15 international standards, preventing customs delays.

Comprehensive Support

Every valve includes:

• 18-month warranty coverage
• Free CAD drawings and 3D models
• Installation guidance videos
• Digital documentation access
• Local technical service partners

Applications Across Industries

Our pneumatic ventilation butterfly valve serve diverse sectors including petrochemical plants, power generation facilities, metallurgy operations, natural gas systems, and pharmaceutical manufacturing. The versatile design adapts to various ventilation and flow control requirements.

Ready to optimize your ventilation system? Contact our technical team at ktec86961886@163.com for personalized valve selection guidance and competitive pricing.
